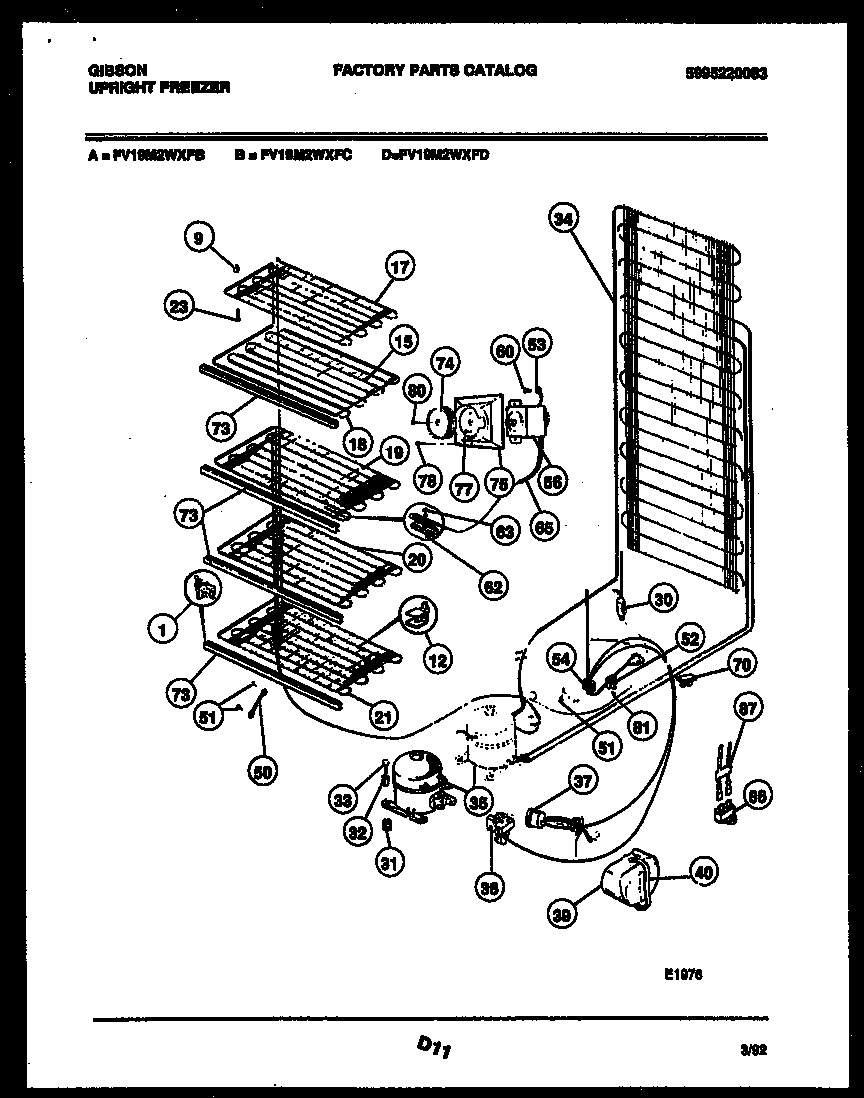

FV19M2WXFD 04 – SYSTEM AND ELECTRICAL PARTS

Products

Position	Product
1A	297001500 Frigidaire Shelf Support
1	297001600 Frigidaire Shelf Support
9	SPCR-TOPGRID FRONT (2)
9A	SPACER-REAR
12	WCI 09949960
15	WCI 08010753
17	WCI 08037983
18	SHELF-EVAPORATOR
19	WCI 08037976
21	SHELF-EVAPORATOR
23	SCREW
30	5303305677 Frigidaire Replacement Filter Dryer Filters
31	216498900 Frigidaire Refrigerator Grommet
32	SLEEVE-COMPRESSOR
33	CREW COMPR MTG
34	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
35	COMPRESSOR W/ ELECTRICALS-SERVICE
36	WCI 5303107753
37	WCI 5308037789
40	5303006412 Frigidaire Refrigerator Cover Mounting Strap
50	WCI 06594651
52	5304455846 Frigidaire Refrigerator Clamp
53	WIRE-GROUND, TEMP CONTROL
54	WCI 5303281572
56	WCI 216023000
59	RETAINER, WIRE, BREAKER
60	216036601 Frigidaire Refrigerator Screw
62	CLAMP, CAP TUBE, COLD CONTROL
63	SCREW, CLAMP, TRUSS HD CR, CONTROL
65	TUBE
70	WCI 06599553
73	SHELF TRIM (4)
74A	WCI 216008602
75	HOUSING
77	SCREW, COVER CONTROL
78	131420300 Frigidaire Screw
80	WCI 09950853
81	216858001 Frigidaire Refrigerator Screw
86	CAPACITOR
87	WCI 5303280303
