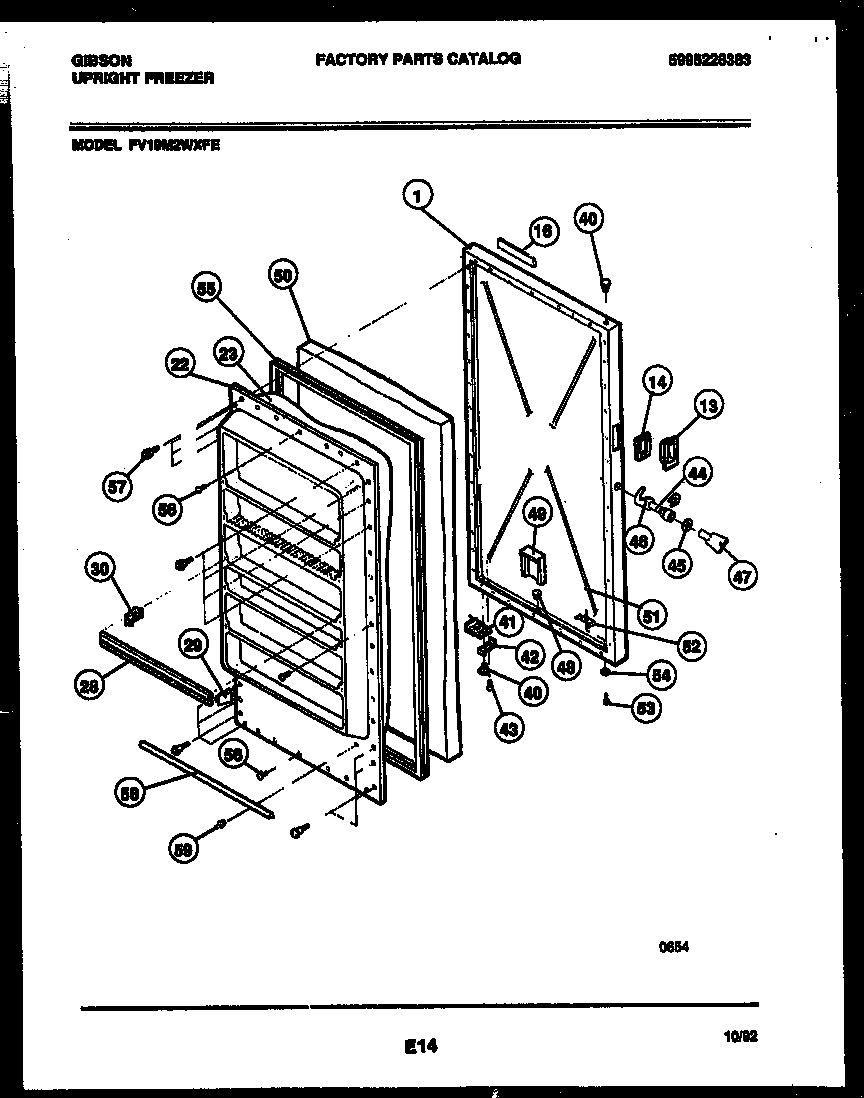

FV19M2WXFE 02 – DOOR PARTS

Products

Position	Product
1	WCI 5303925090
13	WCI 5300112637
14	GASKET, WHITE
16A	INSERT-BEZEL
16	BEZEL, NAMEPLATE
16B	WCI 5300460947
22	WCI 216012701
23	INSULATION (CUT TO SIZE)
28	FRONT-SHELF NARROW
29	5303925377 Frigidaire Refrigerator Endcap Kit R & L
39	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI 5306593364
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5303925107
45	Washer-sealing
46	WCI 3202005
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5300128421
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WCI 08037981
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
55	WCI 3206256
56	216858001 Frigidaire Refrigerator Screw
57	WCI 216022800
58	216036601 Frigidaire Refrigerator Screw
59	5303212828 Frigidaire Refrigerator Primary Clip
