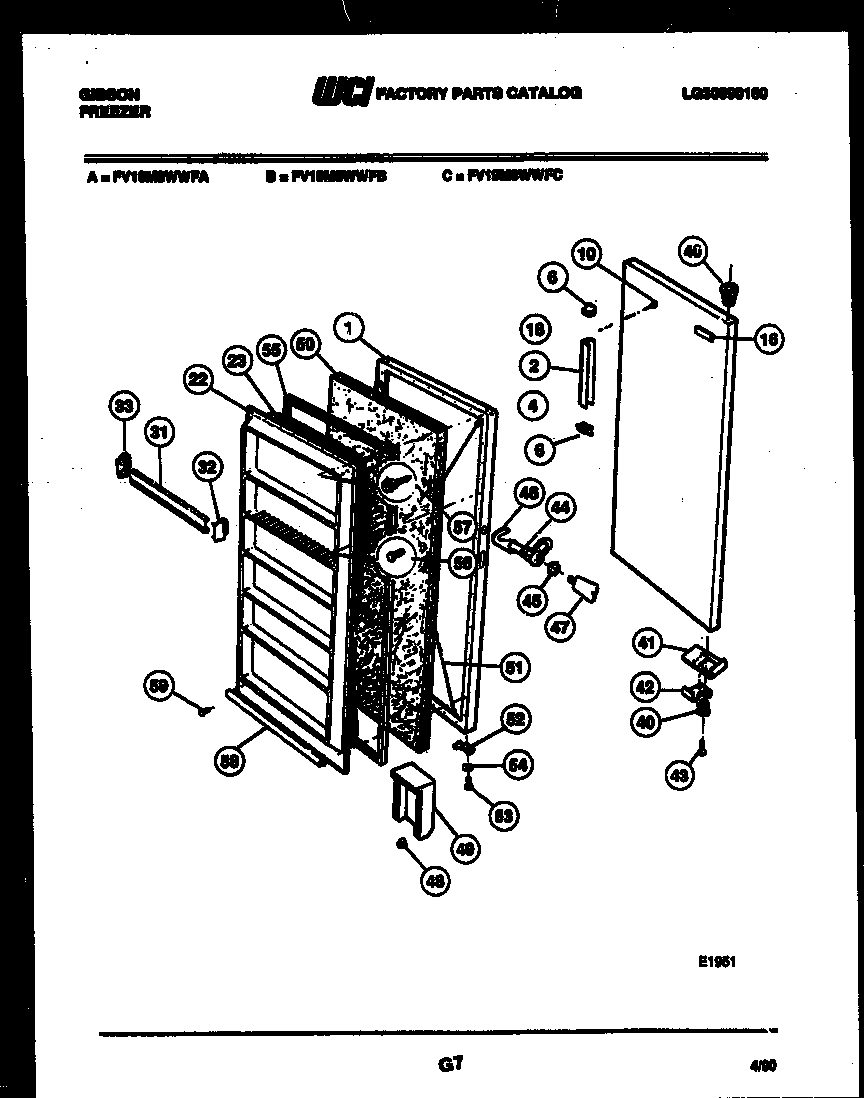

FV19M8WWFB 02 – DOOR PARTS

Products

Position	Product
1	WCI F119928-S
2	WCI F124920
4	SCREW SHIELD
6	HANDLE END CAP-TOP
6	HANDLE END CAP-BOTTOM
10	131168200 Frigidaire Dryer Screw
16	WCI F128767
17	WCI F300246
18	RETAINER
22	WCI 5312469895
23	INSULATION (CUT TO SIZE)
31	FRONT SHELF (5)
32	END CAP, RH WIDE (3)
33	END CAP LH WIDE (3)
40	WCI 5306593364
40	297006800 Frigidaire Refrigerator Bearing Hinge
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5300190358
45	Washer-sealing
46	WCI 3202005
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5300128421
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WCI 08037981
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
55	WCI 3206256
56	216858001 Frigidaire Refrigerator Screw
57	WCI 08009384
58	WCI 5308016356
59	5303212828 Frigidaire Refrigerator Primary Clip
