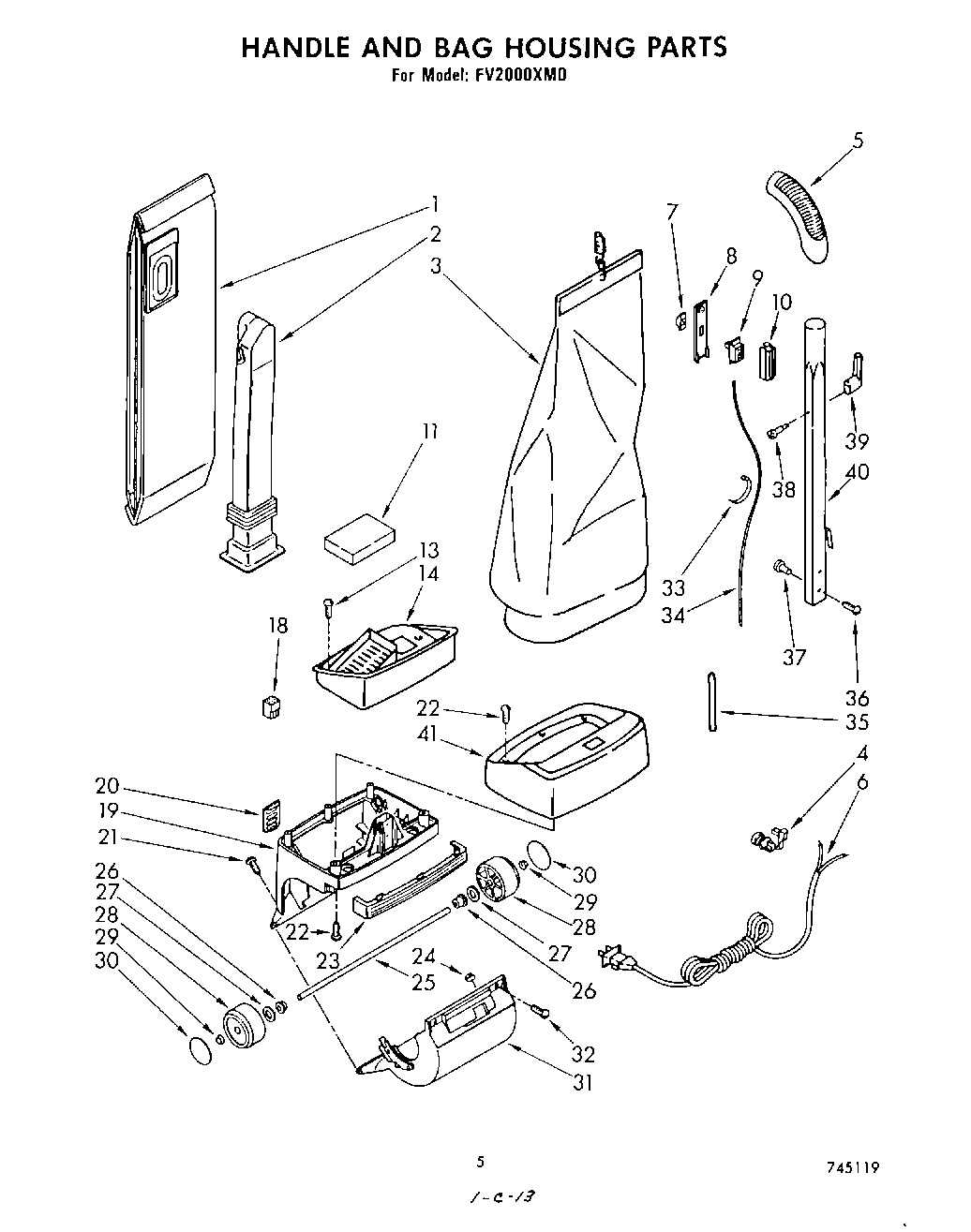

| Repair Parts List |
| Label, Wiring Diagram |
| Owner`s Manual |
| 1 | Bag, Dust (Pkg. of 3) |
| 1 | Bag, Dust (Pkg. of 12) |
| 2 | Tube, Filler |
| 3 | Bag, Outer |
| 4 | Relief, Strain |
| 5 | Grip, Handle |
| 6 | Cord, Power |
| 7 | Topper, Switch |
| 8 | Plate, Switch |
| 9 | Switch |
| 10 | Holder, Switch |
| 11 | Foam |
| 14 | Retainer, Bag |
| 18 | Cap, Insulator |
| 19 | Housing, Rear |
| 20 | Door, Vent |
| 22 | WP488787 Whirlpool Refrigerator Screw |
| 23 | Cover, Trim |
| 24 | On-Sert |
| 25 | Axle, Rear |
| 26 | Bearing (2) |
| 27 | WP120393 Whirlpool Washer Assembly |
| 28 | Wheel, Rear (2) |
| 29 | Nut, Push-On |
| 31 | Housing, Front (Includes Illus. 24) |
| 32 | WP965173 Whirlpool Dishwasher Screw |
| 33 | WPW10339879 Whirlpool Wire Tie |
| 34 | Lead, Wire (Orange) |
| 34 | Lead, Wire (White) |
| 35 | Sleeve, Wiring |
| 36 | Screw, Handle (2) |
| 37 | Nut, Post (2) |
| 38 | Screw, Shoulder |
| 39 | Label, Wheel (2) |
| 39 | Cord Hook |
| 40 | Tube, Handle |
| 41 | Support, Bag Bottom |
