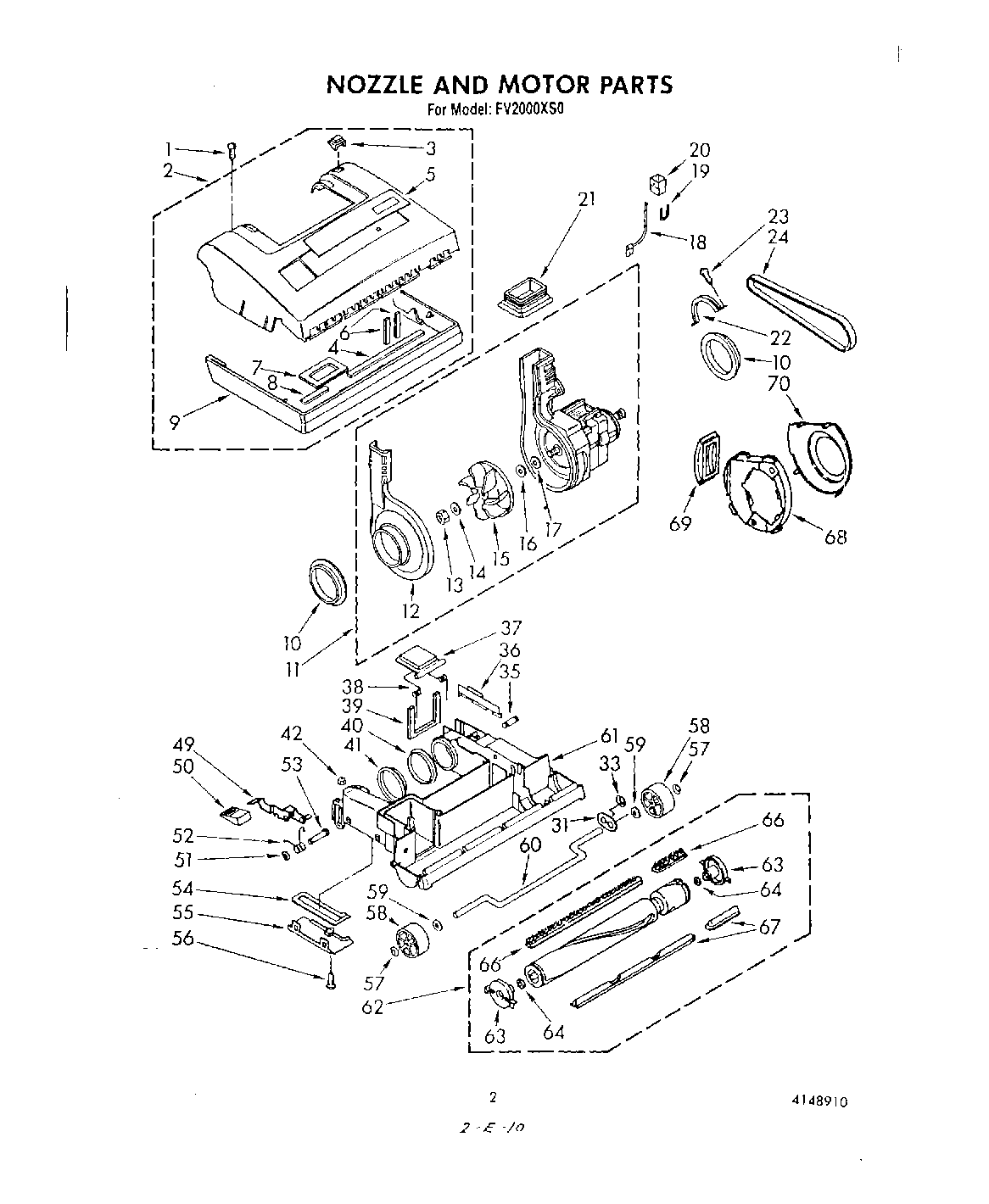

FV2000XS0 02 – SECTION

Products

Position	Product
2	Hood Assembly
3	Lens, Height Adjust
4	Gasket, 12“
5	Nameplate
6	Gasket, 1-5/8“ (2)
7	Gasket
8	Gasket, 4“
9	Bumper
10	Ring, Rubber (2)
11	Motor
12	Cover, Impeller
13	Nut, 5/16-24
15	Impeller
16	Washer, Fiber
17	Washer, Metal
18	Lead, Wire (Black)
18	Lead, Wire (Orange)
19	Jumper, Wire (White)
20	Plug, Insulator
21	Boot, Tube
22	Bracket, Motor
24	Belt (Pkg. of 2)
31	Bracket, Axle
33	Nut, Push-On
35	Bar, Tie
36	Guard, Belt
37	Door, Attachment
38	Spring, Door
39	Gasket, Door
40	Ring, Pivot Shield
41	Ring, Pivot
42	On-Sert
49	Lever, Handle Release
50	Pad, Handle Release
51	Nut, Push-On
52	Spring, Handle Release
53	Pin, Handle Release
54	Seal, Cleanout Cover
55	Cover, Cleanout (Includes Illus. 54)
56	WP488787 Whirlpool Refrigerator Screw
57	Nut, Push-On (2)
58	Wheel, Front (2)
59	WP120393 Whirlpool Washer Assembly
60	Axle, Front
61	Base (Includes Illus. 42)
62	Brush Assembly
63	Bearing & Housing Assembly (2)
64	Washer (2)
66	Brush, Beater Set of (1) 2“ And (1) 10-1/4“
67	Bar, Beater Set of (1) 2“ and (1) 10-1/4“
68	Di
69	WPL 745221
70	WPL 745218
