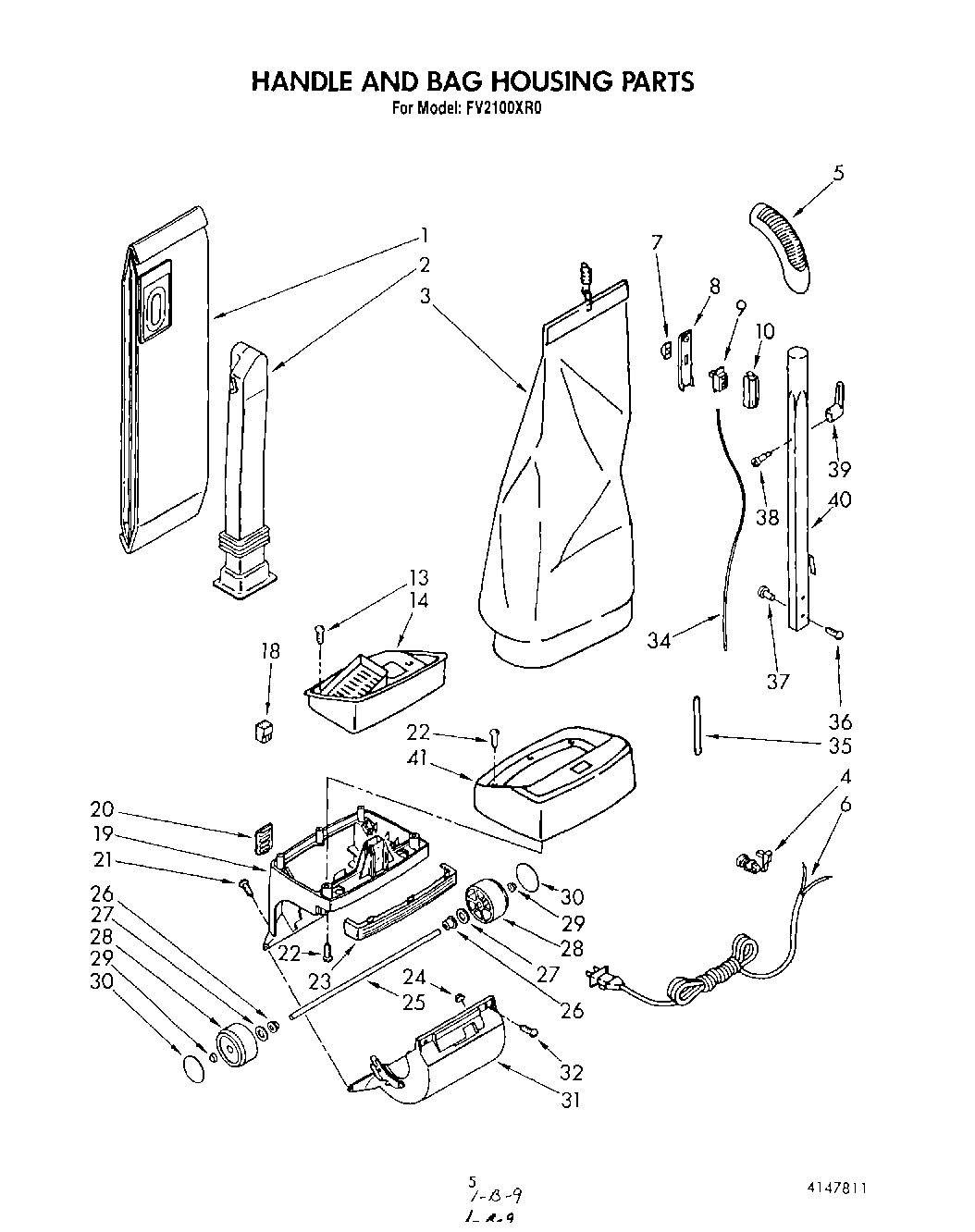

FV2100XR0 04 – SECTION

Products

Position	Product
	Repair Parts List
	Owners Manual
	xIncludes Illus. 36 & 37
	Label, Wiring Diagram
1	bag, dust (pkg. of 12)
1	Bag, Dust (Pkg. of 3)
2	Tube, Filler
3	Bag, Outer
4	Relief, Strain
5	Grip, Handle
6	Cord, Power
7	Topper, Switch
8	Plate, Switch
9	Switch
10	Holder, Switch
14	Retainer, Bag
18	Cap, Insulator
19	xHousing, Rear
20	Door, Vent
22	WP488787 Whirlpool Refrigerator Screw
23	Cover, Trim
24	On-Sert
25	Axle, Rear
26	Bearing (2)
27	WP120393 Whirlpool Washer Assembly
28	Wheel, Rear (2)
29	Nut, Push-On (2)
30	Label, Wheel (2)
31	Housing, Front (Includes Illus. 24)
32	WP965173 Whirlpool Dishwasher Screw
34	Lead, Wire (Orange)
34	Lead, Wire (White)
35	Sleeve, Wiring
36	Screw, Handle (2)
37	Nut, Post (2)
38	Screw, Shoulder
39	Cord Hook
40	xTube, Handle
41	xSupport, Bag Bottom
