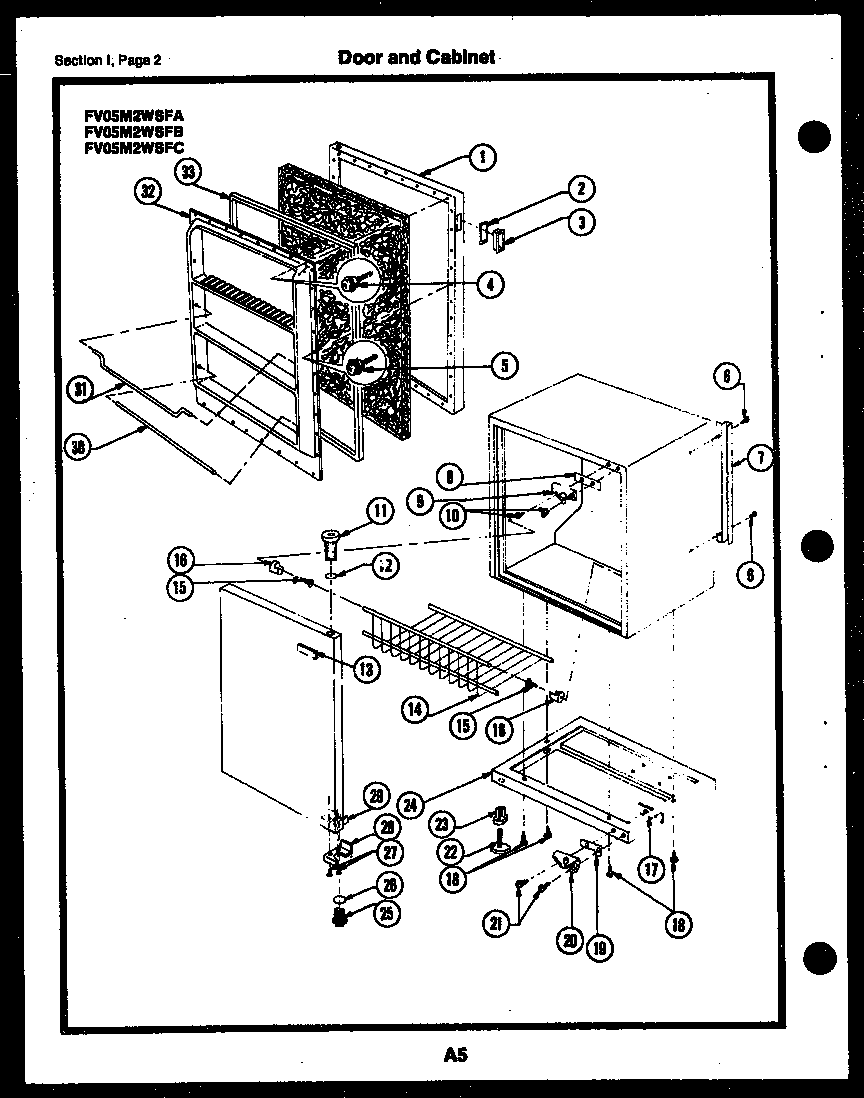

FV21M2WSFC 01 – DOOR AND CABINET

Products

Position	Product
1	WCI F126315-64
2	WCI F112639
3	HANDLE RECESSED
4	SCREW-PANEL
7	WIRE COVER
8	WCI F126321
9	HINGE TOP
10	SCREW TOP HINGE (2)
11	BEARING TOP HINGE
12	RING SEAL TOP HINGE
13	WCI F120868
13	WCI F128767
13	WCI F128760
13	TAPE-FRAME MOUNTING (NON-ILLUSTRATED)
14	PACKAGE RACK
14	WCI F128139
15	216858001 Frigidaire Refrigerator Screw
16	SUPPORT PACKAGE RACK (2)
17	TAPPING PLATE BOTTOM HINGE (2)
18	SCREW BASE ASSEMBLY (4)
19	SPACER BOTTOM HINGE
20	HINGE BOTTOM
21	154518001 Frigidaire Refrigerator Screw
22	LEG LEVELER (2)
23	INSERT LEG LEVELER (2)
24	WCI F126191
25	WCI F84893
26	WASHER
27	SCREW-STOP
28	BRACKET-DOOR STOP
29	STO DOOR
30	WCI F126259
30	WCI F128140
31	SHELF ROD OFFSET (2)
31	WCI F128138
32	WCI F126450-95
33	WCI F126194
33	WCI F126232
