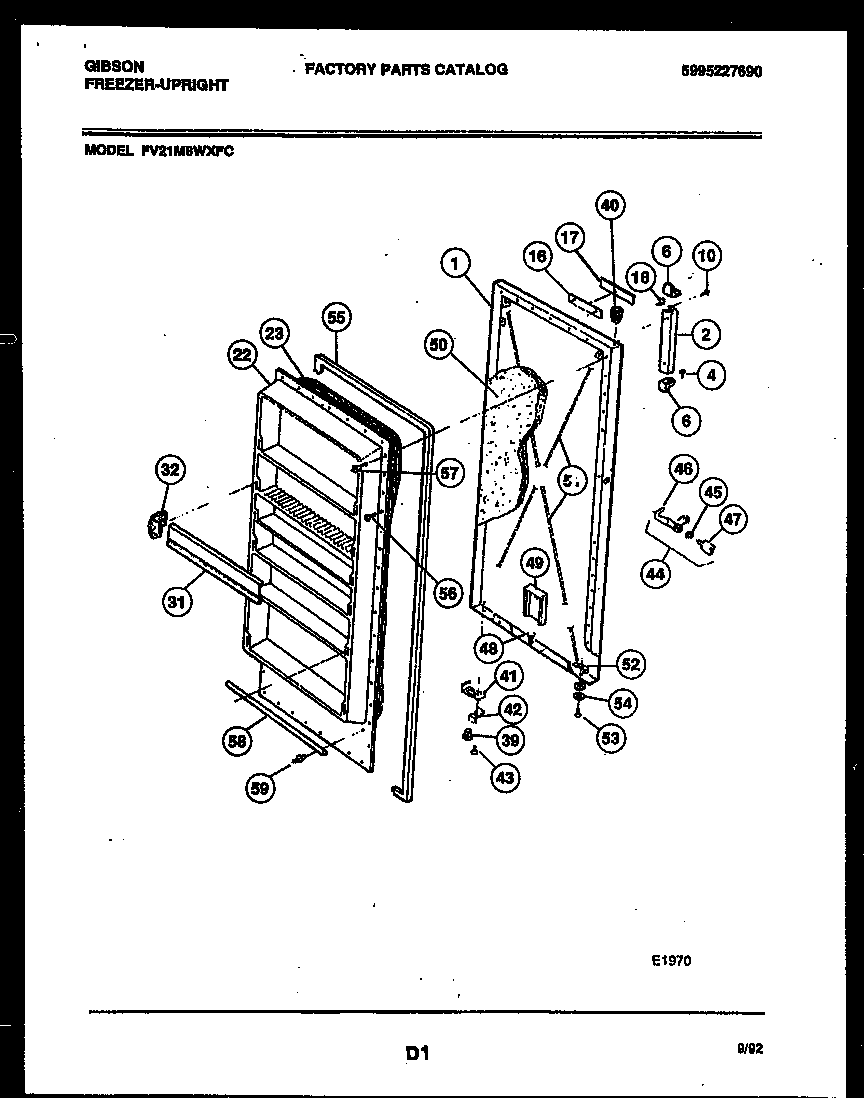

FV21M8WXFC 02 – DOOR PARTS

Products

Position	Product
1	WCI 5303925049
2	WCI 5303209955
4	WCI 5303283898
6A	HANDLE END CAP-BOTTOM
6	HANDLE END CAP-TOP
10	131168200 Frigidaire Dryer Screw
16	BEZEL, NAMEPLATE
17	INSERT-BEZEL
18	WCI 5300119930
22	WCI 216012801
23	INSULATION (CUT TO SIZE)
31	WCI 5303211087
32	WCI 5309948970
32A	WCI 09948971
39	297006800 Frigidaire Refrigerator Bearing Hinge
40	WCI 5306593364
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5303925107
45	Washer-sealing
46	WCI 216013800
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5300128421
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WIRE, DOOR ADJUSTMNT
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
56	216858001 Frigidaire Refrigerator Screw
57	WCI 08009384
58	WCI 5308016356
59	5303212828 Frigidaire Refrigerator Primary Clip
