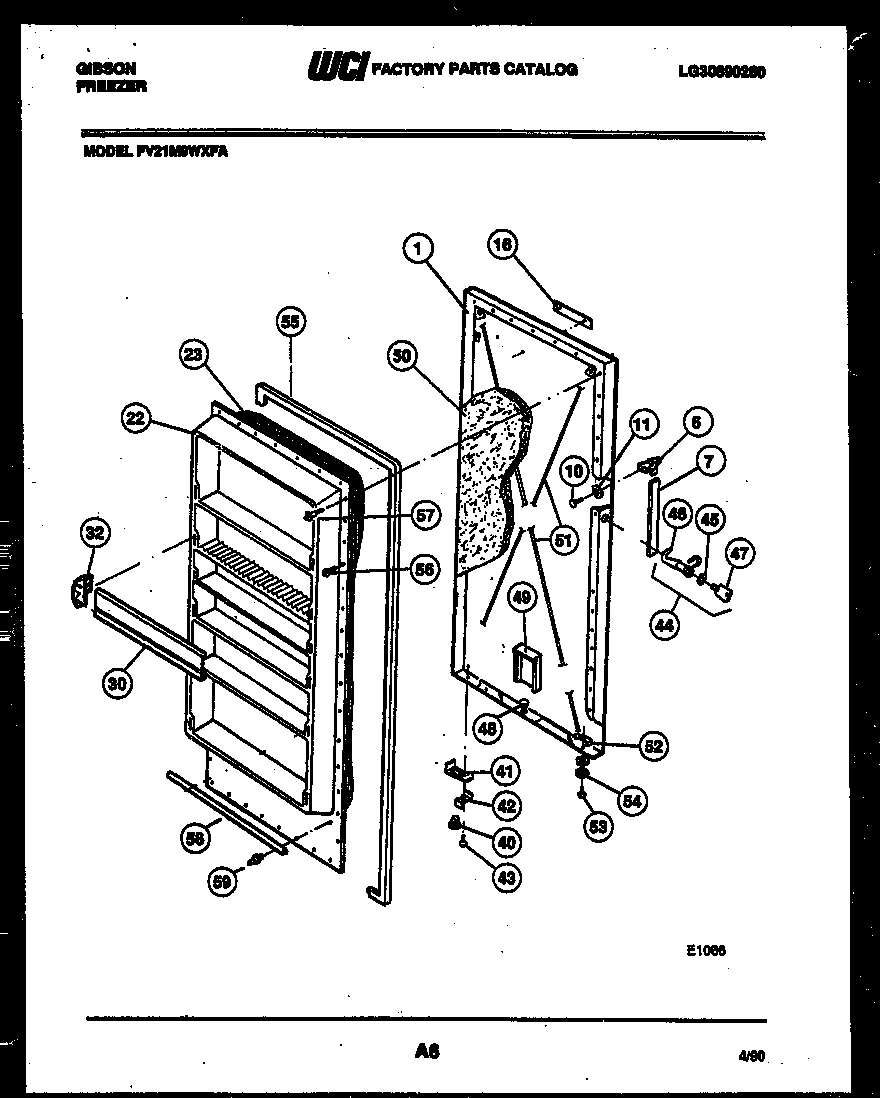

FV21M9WXFA 02 – DOOR PARTS

Products

Position	Product
1	PANEL-DOOR, WHITE
6	END CAP-HANDLE
7	HANDLE, CENTER
10	216858001 Frigidaire Refrigerator Screw
11A	WCI 5303209974
11	134716700 Frigidaire Washer
16	WCI 5303208943
22	WCI F124705-64
23	INSULATION (CUT TO SIZE)
30	WCI 5303209971
30	WCI 5303209970
32	WCI 09948971
32	WCI 5309948970
40	WCI 5306593364
40	297006800 Frigidaire Refrigerator Bearing Hinge
41	WCI 5300091170
42	DOOR STOP
43	Screw,door stop mtg ,4.0 x 0.7-19.7 ,flat hd,metric
44	WCI 5300190358
45	Washer-sealing
46	WCI 3202005
47	297147700 Frigidaire Freezer Plastic Door Key
48	Valve,breather ,door base
49	WCI 5300128421
50	INSULATION-BULK (NON-ILLUSTRATED)
51	WIRE, DOOR ADJUSTMNT
52	WCI 05879859
53	SCREW
54	WASHER, PLAIN, DOOR BRACKET
55	GASKET DOOR
57	WCI 08009384
58	WCI 5308016356
59	5303212828 Frigidaire Refrigerator Primary Clip
