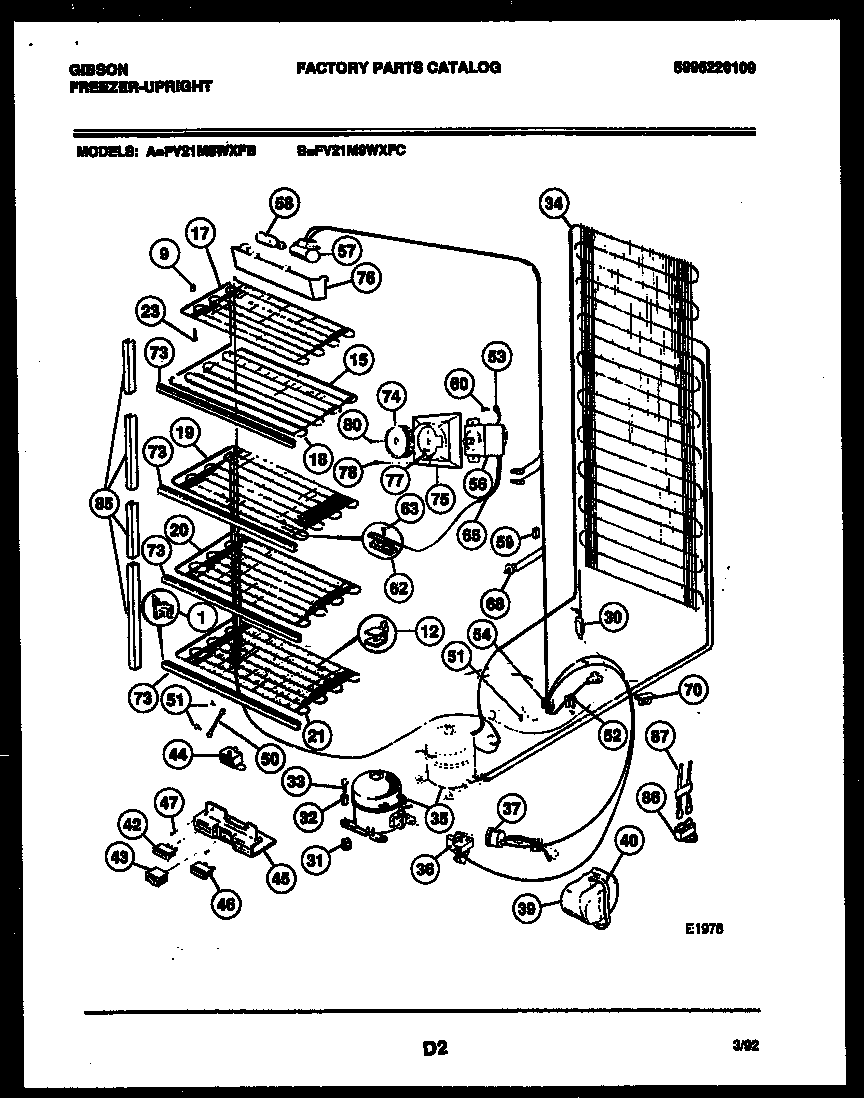

FV21M9WXFC 04 – SYSTEM AND ELECTRICAL PARTS

Written by

Products

Position	Product
1A	297001600 Frigidaire Shelf Support
1	297001500 Frigidaire Shelf Support
9	SPCR-TOPGRID FRONT (2)
9A	SPACER-REAR
12	WCI 09949960
15	WCI 5308010744
17	WCI 08037983
18	SHELF-EVAPORATOR
19	SHELF-EVAPORATOR
20	WCI 5308037984
21	SHELF-EVAPORATOR
23	SCREW
30	5303305677 Frigidaire Replacement Filter Dryer Filters
31	216498900 Frigidaire Refrigerator Grommet
32	SLEEVE-COMPRESSOR
33	CREW COMPR MTG
34	5300083897 Frigidaire Refrigerator Condenser P1 O/S2
35	COMPRESSOR W/ ELECTRICALS-SERVICE
37	WCI 5308037789
40	5303006412 Frigidaire Refrigerator Cover Mounting Strap
42	WCI 5308002706
43	WCI 5303017178
44	WCI 08016367
45	WCI 08016369
46	WCI 08016772
46A	WCI F300210
47	WCI 08037851
50	WCI 06594651
52	5304455846 Frigidaire Refrigerator Clamp
53	WIRE-GROUND, TEMP CONTROL
54	WCI 5303208963
56	WCI 216023100
57	SOCKET, LIGHT/LAMP
58	5304517886 Frigidaire Refrigerator Light
59	RETAINER, WIRE, BREAKER
60	216036601 Frigidaire Refrigerator Screw
62	CLAMP, CAP TUBE, COLD CONTROL
63	SCREW, CLAMP, TRUSS HD CR, CONTROL
65	TUBE
68	5309918806 Frigidaire Refrigerator Light Switch Door
70	WCI 06599553
73	SHELF TRIM (4)
74	WCI 216008704
75	HOUSING
76	SHIELD-LIGHT
77	SCREW, COVER CONTROL
78	131420300 Frigidaire Screw
80	WCI 09950853
85	WCI F117243-4
86	WCI 5303017753
87	WCI 5303280303
