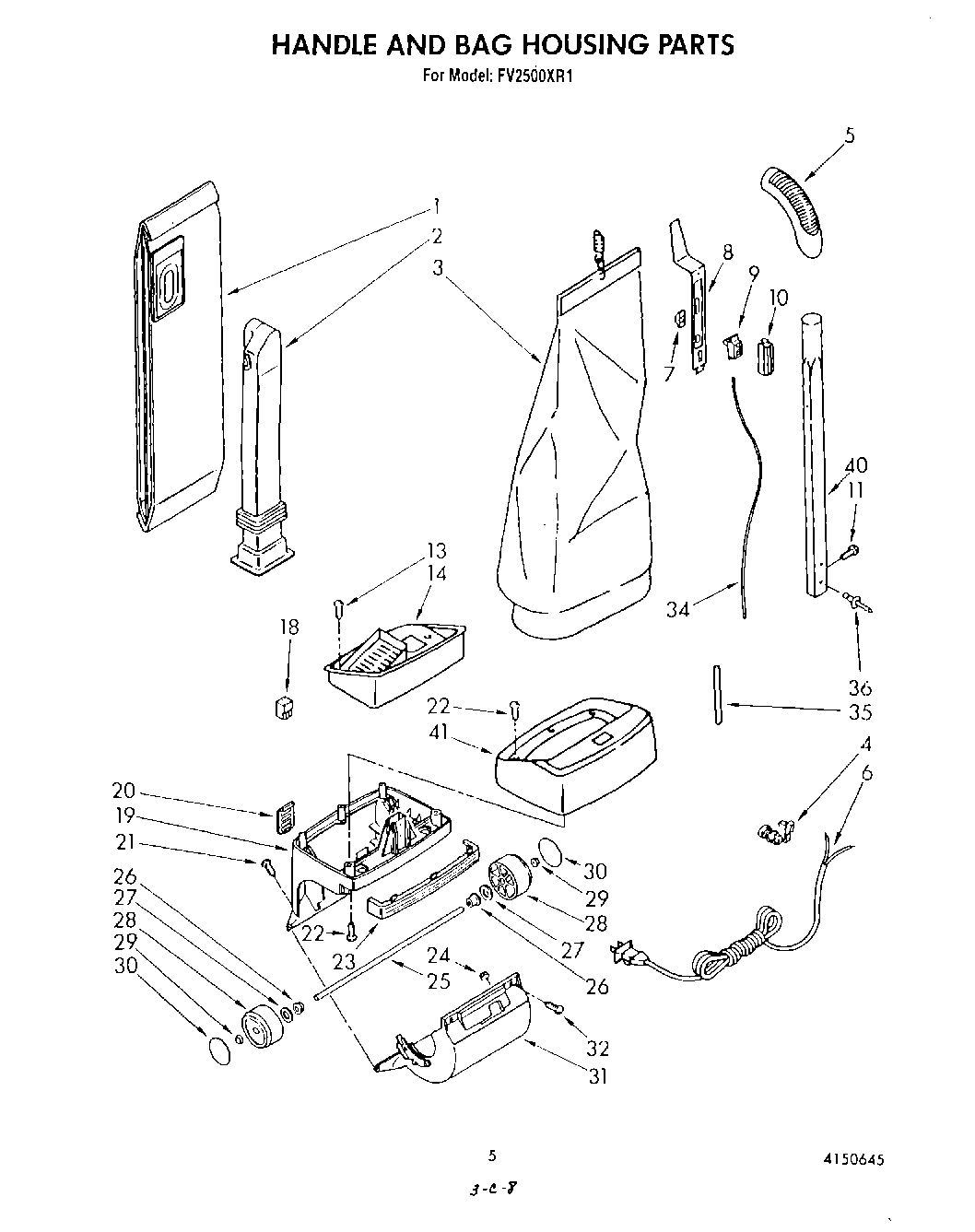

FV2500XR1 04 – SECTION

Products

Position	Product
	Label, Wiring Diagram
	xIncludes Illus. 36 & 37
	Owners Manual
	Repair Parts List
1	Bag, Dust (Cloth)
2	Tube, Filler
3	Bag, Outer
4	Relief, Strain
5	Grip, Handle
6	Cord, Power
7	Topper, Switch
8	Plate, Switch
9	Switch
10	Holder, Switch
11	Screw, 8x 3/8 (2)
14	Retainer, Bag
18	Cap, Insulator
19	xHousing, Rear
20	Door, Vent
22	WP488787 Whirlpool Refrigerator Screw
23	Cover, Trim
24	On-Sert
25	Axle, Rear
26	Bearing (2)
27	WP120393 Whirlpool Washer Assembly
28	Wheel, Rear (2)
29	Nut, Push-On (2)
30	Label, Wheel (2)
31	Housing, Front (Includes Illus. 24)
32	WP965173 Whirlpool Dishwasher Screw
34	Lead, Wire (White)
34	Lead, Wire (Blue)
35	Sleeve, Wiring
36	Rivet-Large Flange
40	Tube, Handle
41	Support, Bag Bottom
