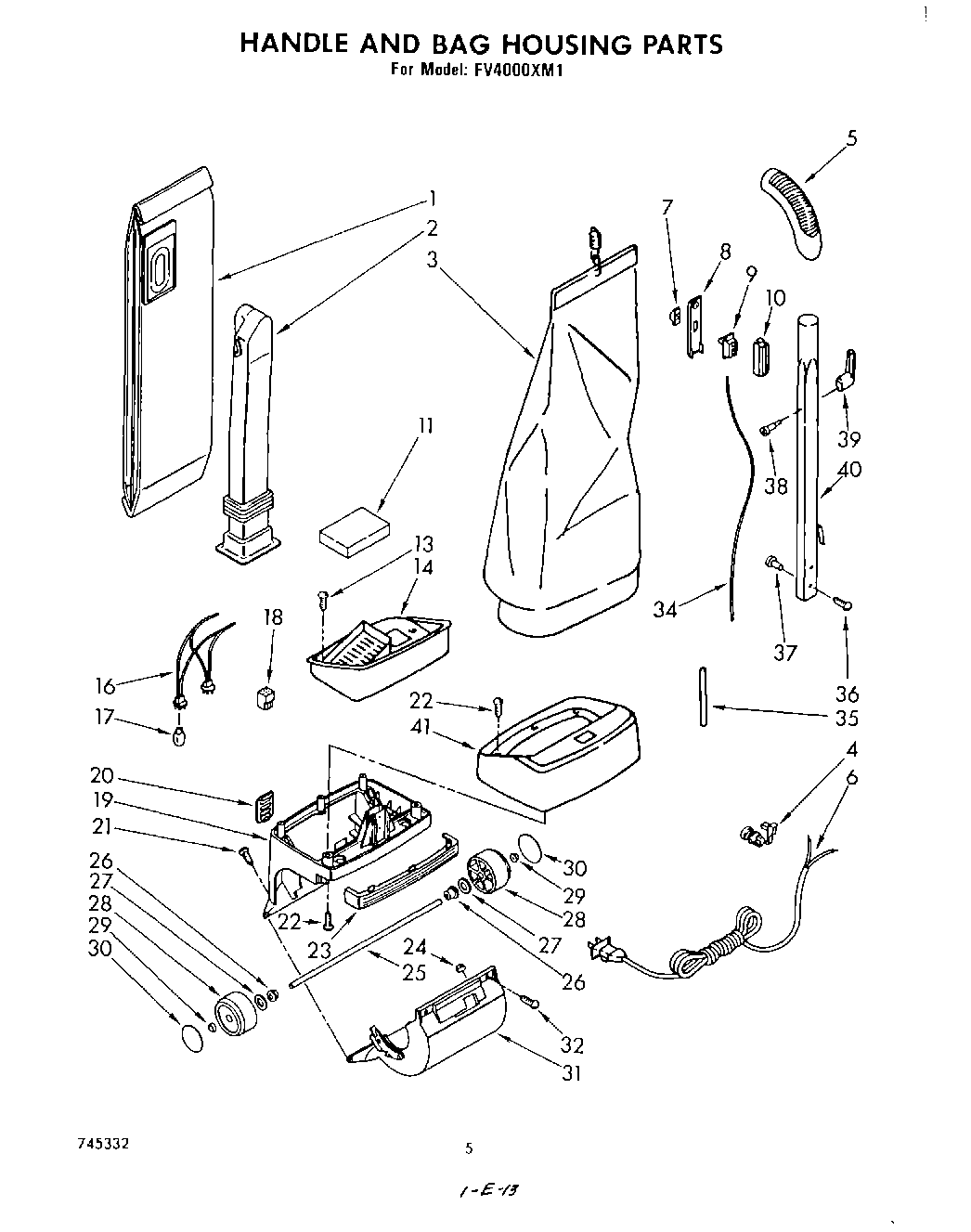

FV4000XM1 04 – SECTION

Products

Position	Product
	Repair Parts List
	Label, Wiring Diagram
	Owner`s Manual
1	Bag, Dust (Pkg. of 12)
1	Bag, Dust (Pkg. of 3)
2	Tube, Filler
3	Bag, Outer
4	Relief, Strain
5	Grip, Handle
6	Cord, Power
7	Topper, Switch
8	Plate, Switch
9	Switch
10	Holder, Switch
11	Foam
14	Retainer, Bag
16	Socket, Bulb
17	Bulb, Light (Pkg. Of 2)
18	Cap, Insulator
19	Housing, Rear
20	Door, Vent
22	WP488787 Whirlpool Refrigerator Screw
23	Lens, Light
24	On-Sert
25	Axle, Rear
26	Bearing (2)
27	WP120393 Whirlpool Washer Assembly
28	Wheel, Rear (2)
29	Nut, Push-On (2)
30	Label, Wheel (2)
31	Housing, Front (Includes Illus. 24)
32	WP965173 Whirlpool Dishwasher Screw
34	Lead, Wire (Orange)
34	Lead, Wire (Blue)
34	Lead, Wire (White)
35	Sleeve, Wiring
36	Screw, Handle (2)
37	Nut, Post (2)
38	Screw, Shoulder
39	Cord Hook
40	Tube, Handle
41	Support, Bag Bottom
