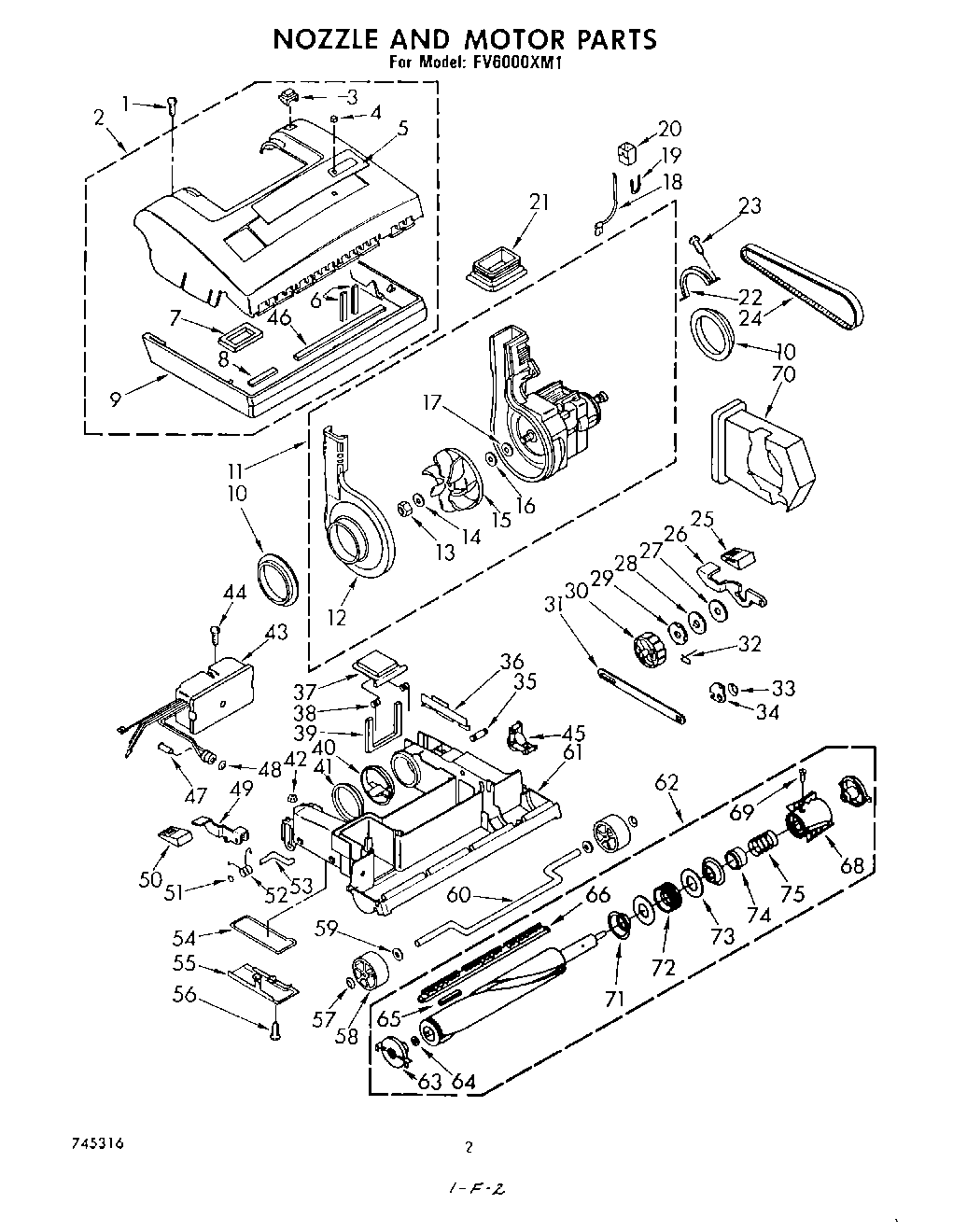

FV6000XM1 02 – SECTION

Products

Position	Product
2	Hood Assembly
3	Lens, Height Adjust
4	Lens, Solid State
5	Nameplate
6	Gasket, 1-5/8“ (2)
7	Gasket
8	Gasket, 4“
9	Bumper
10	Ring, Rubber (2)
11	Motor
12	Cover, Impeller
13	Nut, 5/16-24
15	Impeller
16	Washer, Fiber
17	Washer, Metal
18	Lead, Wire (Blue)
18	Lead, Wire (Orange)
19	Jumper, Wire (Red)
20	Plug, Insulator
21	Boot, Tube
22	Bracket, Motor
24	Belt (Pkg. of 1)
25	Pad, Height Adjust
26	Lever, Height Adjust
27	Washer, Thrust
28	Washer, Foam
29	Catch, Indexing
30	Indicator Cam
31	Push Rod
32	Spring, Assist
34	Rocker
35	Bar, Tie
36	Guard, Belt
37	Door, Attachment
38	Spring, Door
39	Gasket, Door
40	Ring, Pivot Shield
41	Ring, Pivot
42	On-Sert
43	Sensor
45	Idler, Belt
46	Gasket, 12“
47	Stud, Sensor
48	Nut, Push-On
49	Lever, Handle Release
50	Pad, Handle Release
51	Ring, Retainer
52	Spring, Handle Release
53	Rod, Handle Release
54	Seal, Cleanout Cover
55	Cover, Cleanout (Includes Illus. 54)
56	WP488787 Whirlpool Refrigerator Screw
57	Nut, Push-On (2)
58	Wheel, Front (2)
59	WP120393 Whirlpool Washer Assembly
60	Axle, Front
61	Base (Includes Illus. 42)
62	Brush Assembly
63	Bearing & Housing Assembly (2)
64	Washer (2)
65	Magnet
66	Brush & Bar,
68	WPL 745165
69	WPL 681681
70	WPL 745146
71	WPL 745159
72	WPL 745157
73	WPL 745158
74	WPL 745160
75	WPL 745156
