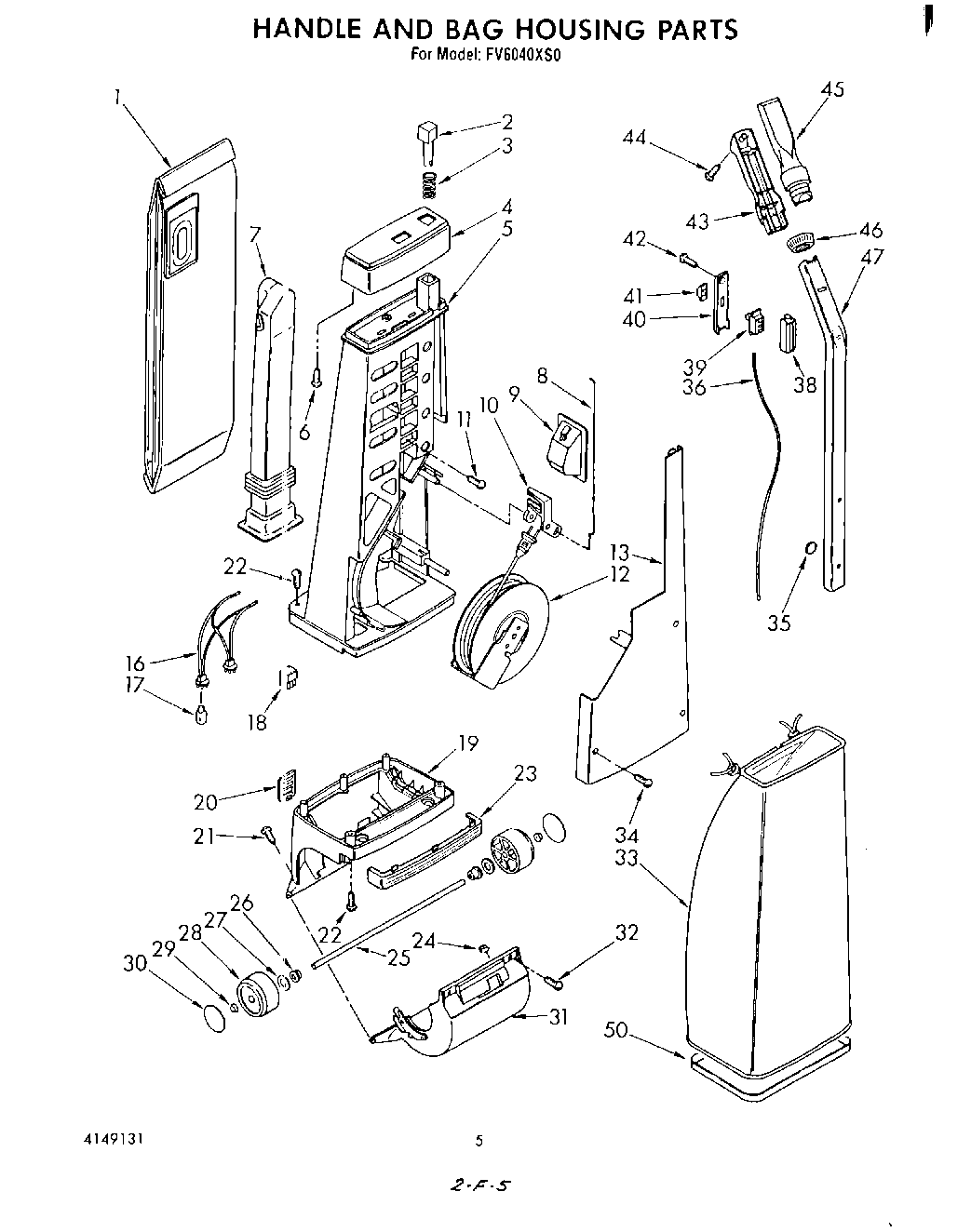

| 1 | bag, dust (pkg. of 12) |
| 1 | Bag, Dust (Pkg. of 3) |
| 2 | Button, Cord Release |
| 3 | Spring, Button |
| 4 | Top, Bag |
| 5 | Frame, Bag (See Note) |
| 7 | Tube, Filler |
| 8 | Rod, Actuator (See Note) |
| 9 | Trim, Power Cord |
| 10 | Lock, Cord (See Note) |
| 11 | Screw, 8x 3/8 (2) |
| 12 | Reel, Cord (See Note) |
| 13 | Cover, Cord Reel (See Note) |
| 16 | Socket, Bulb |
| 17 | Bulb, Light (Pkg. Of 2) |
| 18 | Cap, Insulator |
| 19 | Housing, Rear |
| 20 | Door, Vent |
| 23 | Lens, Light |
| 24 | On-Sert |
| 25 | Axle, Rear |
| 26 | Bearing (2) |
| 27 | WP120393 Whirlpool Washer Assembly |
| 28 | Wheel, Rear (2) |
| 29 | Nut, Push-On (2) |
| 30 | Label, Wheel (2) |
| 31 | Housing, Front (Includes Illus. 24) |
| 32 | WP965173 Whirlpool Dishwasher Screw |
| 33 | Bag, Outer (Includes Illus 50) |
| 34 | WP488787 Whirlpool Refrigerator Screw |
| 35 | Plug, Hole (2) |
| 36 | Lead, Wire (Blue) |
| 36 | Lead, Wire (Red) |
| 36 | Lead, Wire (Orange) |
| 38 | Holder, Switch |
| 39 | Switch |
| 40 | Plate, Switch |
| 41 | Topper, Switch |
| 42 | WP488729 Whirlpool Refrigerator Door Screw |
| 43 | Grip, Lower |
| 44 | WP487353 Whirlpool Refrigerator Screw |
| 45 | Grip, Upper |
| 46 | Ring, Grip |
| 47 | Tube, Handle (See Note) |
| 50 | Strap, Retainer |
