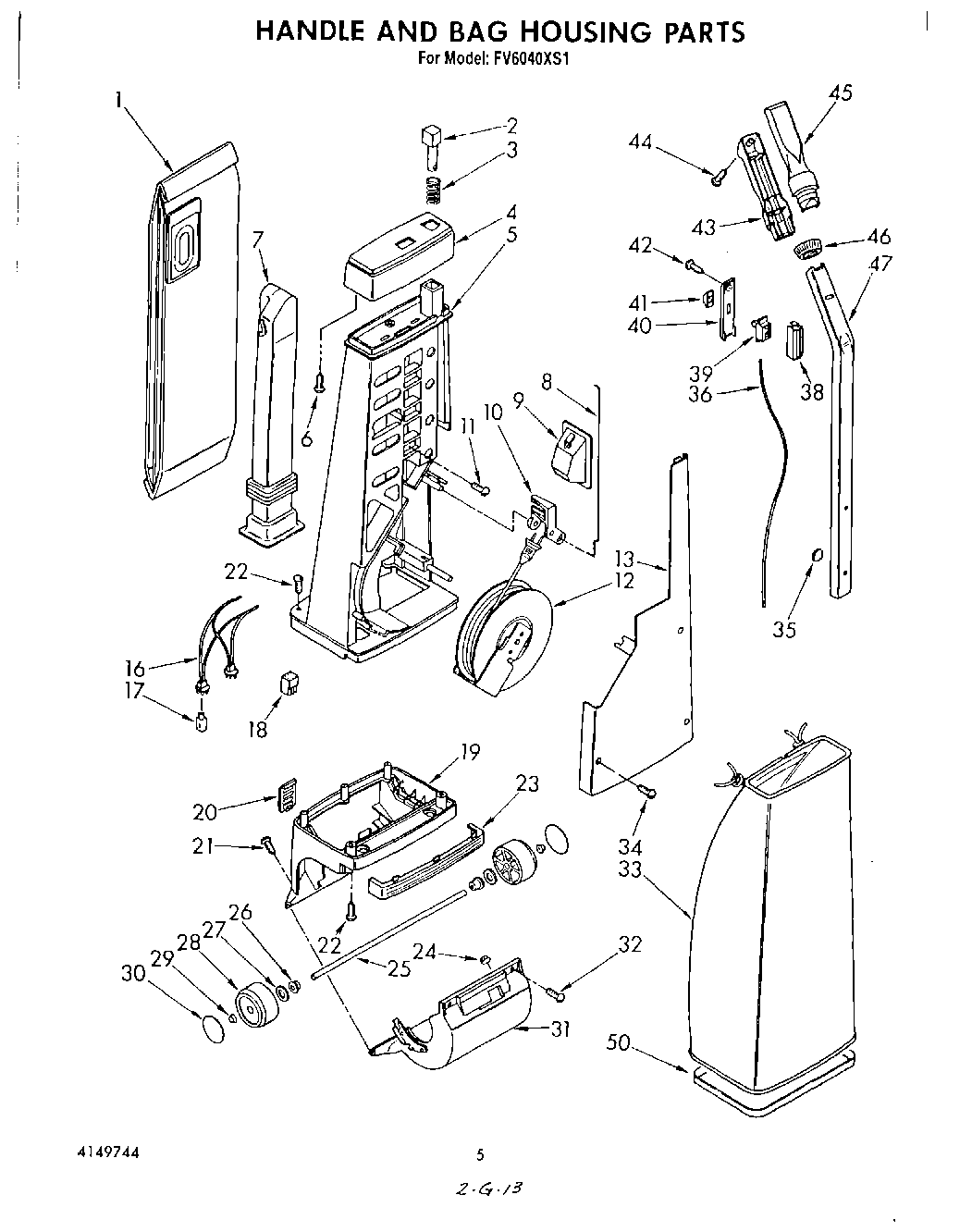

FV6040XS1 04 – SECTION

Products

Position	Product
	Repair Parts List
	Label, Wiring Diagram
	Owner`s Manual
1	bag, dust (pkg. of 12)
1	Bag, Dust (Pkg. of 3)
2	Button, Cord Release
3	Spring, Button
4	Top, Bag
5	Frame, Bag (See Note)
7	Tube, Filler
8	Rod, Actuator (See Note)
9	Trim, Power Cord
10	Lock, Cord (See Note)
11	Screw, 8x 3/8 (2)
12	Reel, Cord (See Note)
13	Cover, Cord Reel (See Note)
16	Socket, Bulb
17	Bulb, Light (Pkg. Of 2)
18	Cap, Insulator
19	Housing, Rear
20	Door, Vent
23	Lens, Light
24	On-Sert
25	Axle, Rear
26	Bearing (2)
27	WP120393 Whirlpool Washer Assembly
28	Wheel, Rear (2)
29	Nut, Push-On (2)
30	Label, Wheel (2)
31	Housing, Front (Includes Illus. 24)
32	WP965173 Whirlpool Dishwasher Screw
33	Bag, Outer (Includes Illus 50)
34	WP488787 Whirlpool Refrigerator Screw
35	Plug, Hole (2)
36	Lead, Wire (Blue)
36	Lead, Wire (Orange)
36	Lead, Wire (Red)
38	Holder, Switch
39	Switch
40	Plate, Switch
41	Topper, Switch
42	WP488729 Whirlpool Refrigerator Door Screw
43	Grip, Lower
44	WP487353 Whirlpool Refrigerator Screw
45	Grip, Upper
46	Ring, Grip
47	Tube, Handle (See Note)
50	Strap, Retainer
