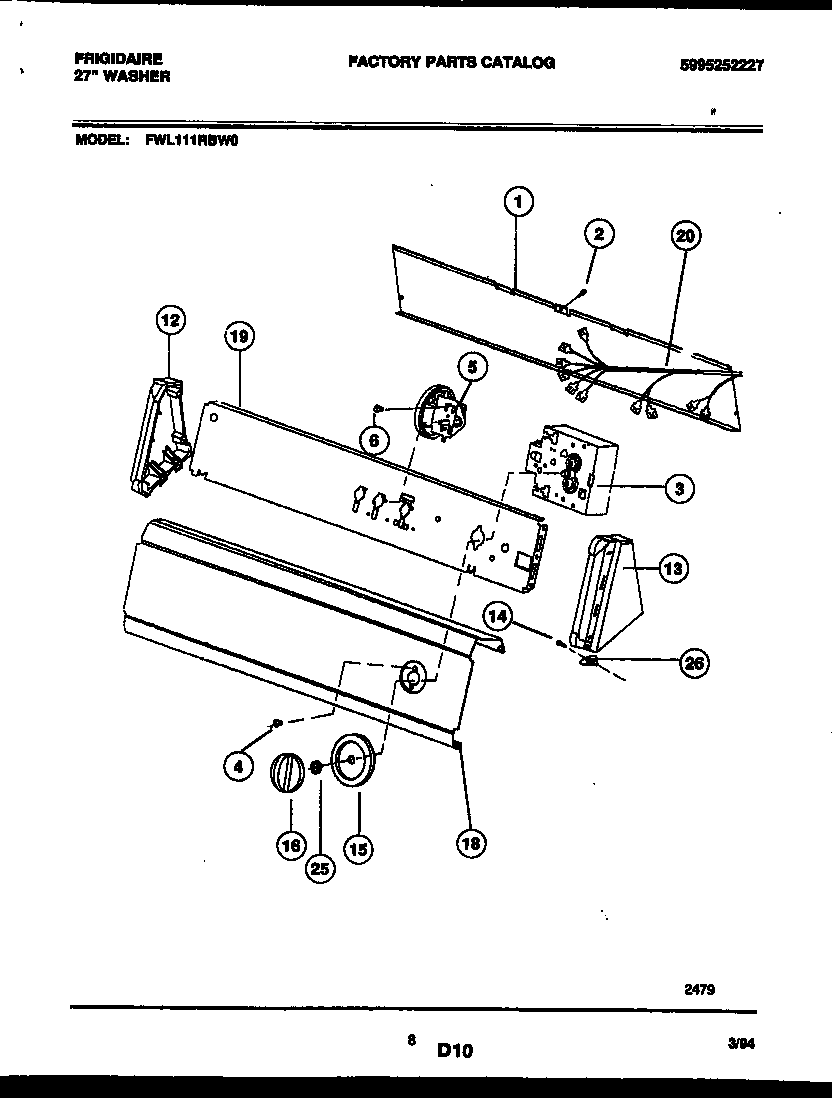

FWL111RBW0 05 – CONSOLE AND CONTROL PARTS

FWL111RBW0 05 – CONSOLE AND CONTROL PARTS

Written by

in

FWL111RBW0 05 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
*94692SCREW
*94692131243800 Frigidaire Screw
1COVER-BACK
2131205100 Frigidaire Screw
3WCI 131237400
4SCREW (2)
5WCI 131302500
6131168200 Frigidaire Dryer Screw
12WCI 5303291344
13WCI 5303291352
14WCI 5303289526
15WCI 5303295581
16WCI 5308014337
18WCI 131301800
19WCI 131297306
20WCI 131166000
25Spacer,washer ,timer shaft
26CLIP-CONSOLE MTG
