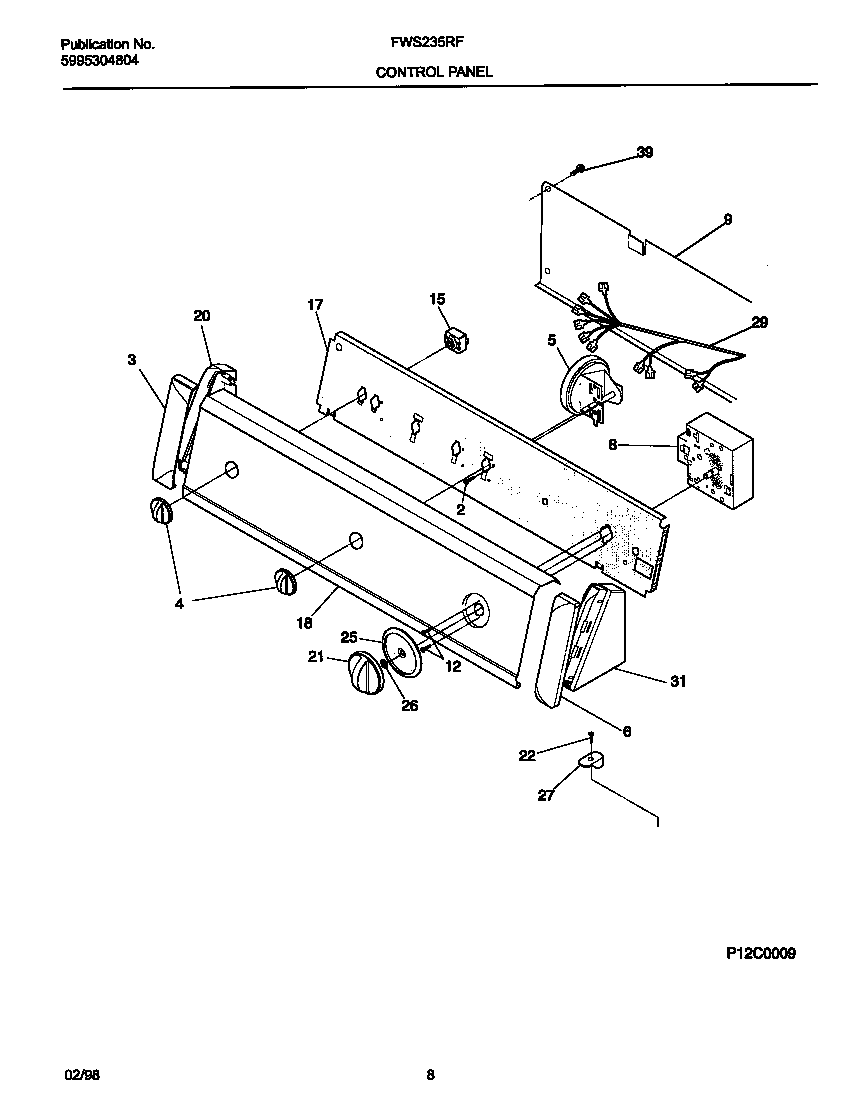

FWS235RFT0 05 – CONTROL PANEL

FWS235RFT0 05 – CONTROL PANEL

Written by

in

FWS235RFT0 05 – CONTROL PANEL

Products

PositionProduct
2WCI 073325-000
3WCI 131122612
4WCI 131141102
5134680100 Frigidaire Pressure Switch
6WCI 131122602
8WCI 131436700
9BACKSHEET
12131243800 Frigidaire Screw
15WCI 131047000
17WCI 131297306
18WCI 131703100
20WCI 131122712
21WCI 131140602
22WCI 131266300
25WCI 131140702
26Spacer,washer ,timer shaft
27CLIP-CONSOLE MTG
29WCI 131645000
31WCI 131122702
39131205100 Frigidaire Screw
