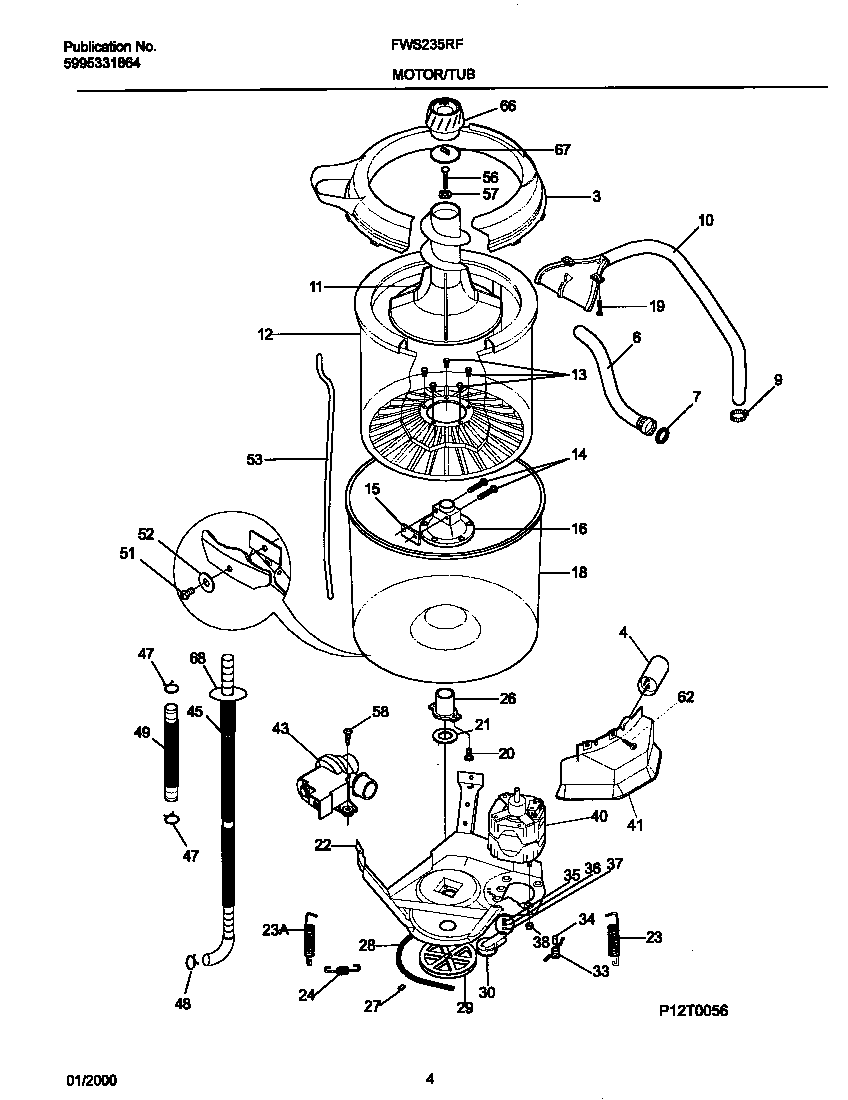

FWS235RFT5 03 – P12T0046 WSHR MTR,HOSE

FWS235RFT5 03 – P12T0046 WSHR MTR,HOSE

Written by

in

FWS235RFT5 03 – P12T0046 WSHR MTR,HOSE

Products

PositionProduct
*54683INSERT-SPRING ADJ
*54681WCI 131462500
*54682WCI 131506500
*546845303309503 Frigidaire Clip
3131551103 Frigidaire Splash Tub Cover P1 O/S1
4131212301 Frigidaire Washer Capacitor Motor
65303912532 Frigidaire Hose Inlet 60"
75303161296 Frigidaire Washer-Inlet Hose (1Piece)
95304488479 Frigidaire Washer Hose Clamp
10WCI 131726300
11131605901 Frigidaire Washer Agitator Assembly
12WCI 131221300
13137546400 Frigidaire Screw 5/165-18 X .625
14137539500 Frigidaire Washer Trunnion Lock Plate Bolt
15137107000 Frigidaire Plate
16131545101 Frigidaire Dryer Washer Transmission Trunnion Nut
17WCI 131219900
18TUB-SPLASH, W/AIR DOME, BRNG
19131205300 Frigidaire Screw
203205150 Frigidaire Tub Bearing Screw
215308002401 Frigidaire Washer Primary
22WCI 131373610
23134885900 Frigidaire Spring
23134886600 Frigidaire Spring Primary
24WCI 131373900
263204405 Frigidaire Outer Tub Spin Bearing
275303270023 Frigidaire Screw Set
28WASHER BELT
29WCI 131498300
30WCI 131862900
33TORSION SPRING
34WCI 3204426
353161433 Frigidaire Retainer
36WASHER
37SPRING WASHER
38WCI 5303318708
40WCI 131760000
41131513300 Frigidaire Shield
43137221600 Frigidaire Washer Drain Pump
45131461200 Frigidaire Washer Drain Hose
47131306234 Frigidaire Clamp Pump
49131494800 Frigidaire Hose-Pump P1 to Tub
51WCI 131659000
52WCI 131315800
535304401845 Frigidaire Tube Pressure
56Screw,agitator mtg ,5/16-18 x 1.250
57131339600 Frigidaire P1-Spacer-DISP
58WCI 131464900
62131302800 Frigidaire Drum Vane Screw
66Agitator Cap Assy,dispenser cup ,dual action
67Mechanism,disp cap assy ,dual action
68131707800 Frigidaire Drain Hose Ring
