FWS445RBT1 05 – CONTROL PANEL – Aparts

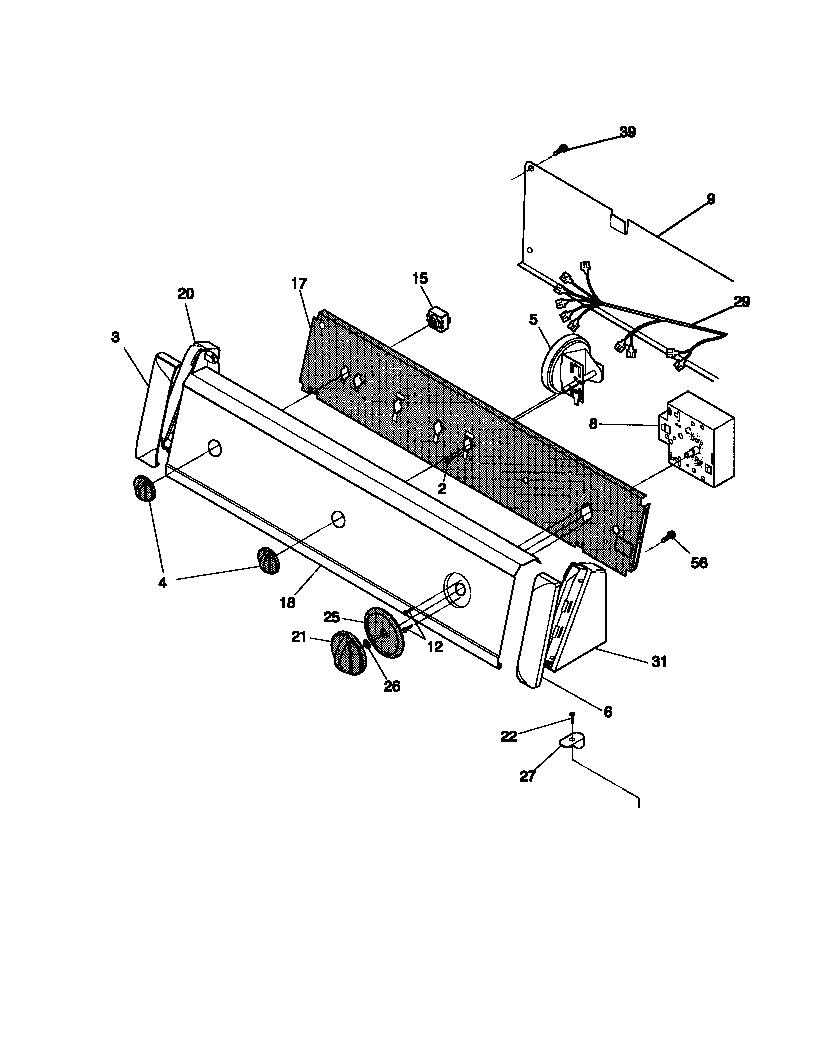

FWS445RBT1 05 – CONTROL PANEL

Products

Position	Product
2	131168200 Frigidaire Dryer Screw
3	WCI 131122612
4	WCI 131141102
5	134680100 Frigidaire Pressure Switch
6	WCI 131122602
8	WCI 131436800
9	BACKSHEET
12	SCREW (2)
15	WCI 131081200
17	WCI 131297306
18	WCI 131253400
20	WCI 131122712
21	WCI 131140602
22	WCI 131266300
25	WCI 131140702
26	Spacer,washer ,timer shaft
27	CLIP-CONSOLE MTG
29	WCI 131479100
31	WCI 131122702
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
