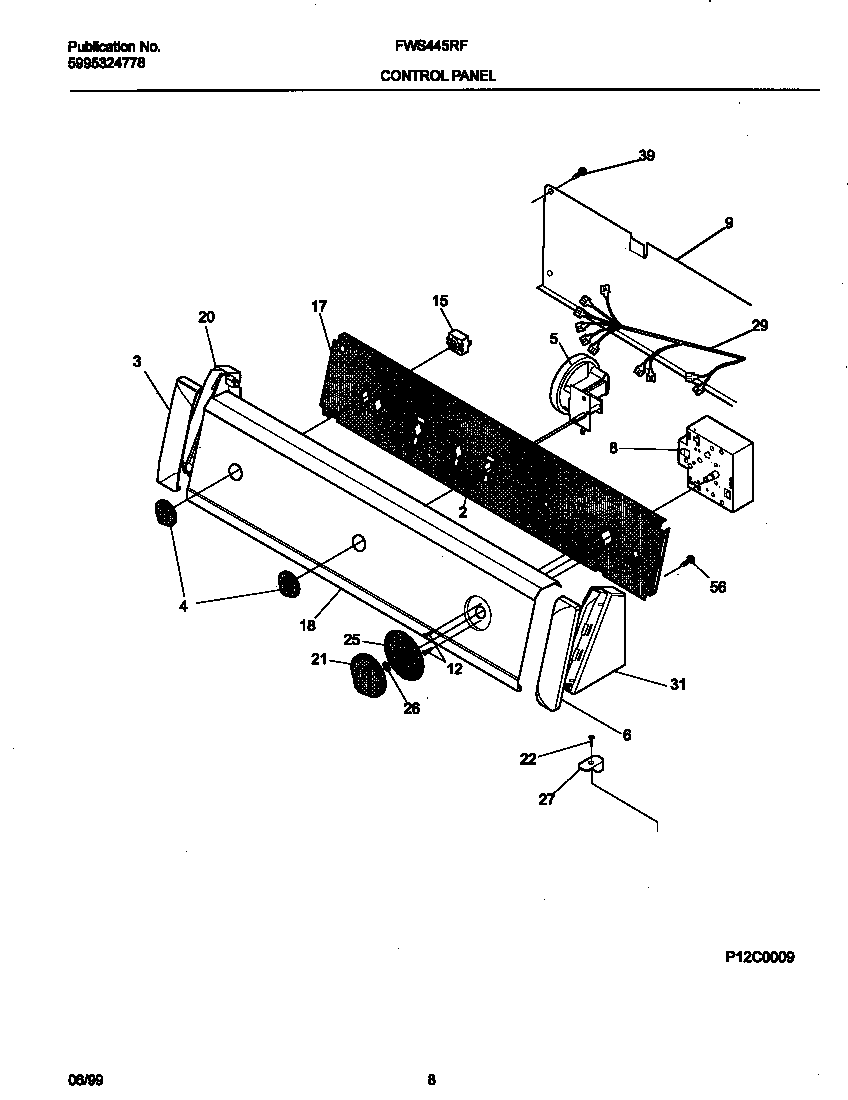

FWS445RFT3 05 – P12C0009 CONTROL PANEL

Products

Position	Product
*06203	WCI 131507700
2	131168200 Frigidaire Dryer Screw
3	WCI 131122612
4	WCI 131141102
5	134680100 Frigidaire Pressure Switch
6	WCI 131122602
8	WCI 131436800
9	BACKSHEET
12	218359202 Frigidaire Refrigerator Screw
15	WCI 131081200
17	WCI 131728900
18	WCI 131681800
20	WCI 131122712
21	WCI 131140602
22	WCI 131266300
25	WCI 131140702
26	Spacer,washer ,timer shaft
27	CLIP-CONSOLE MTG
29	WCI 131653700
31	WCI 131122702
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
