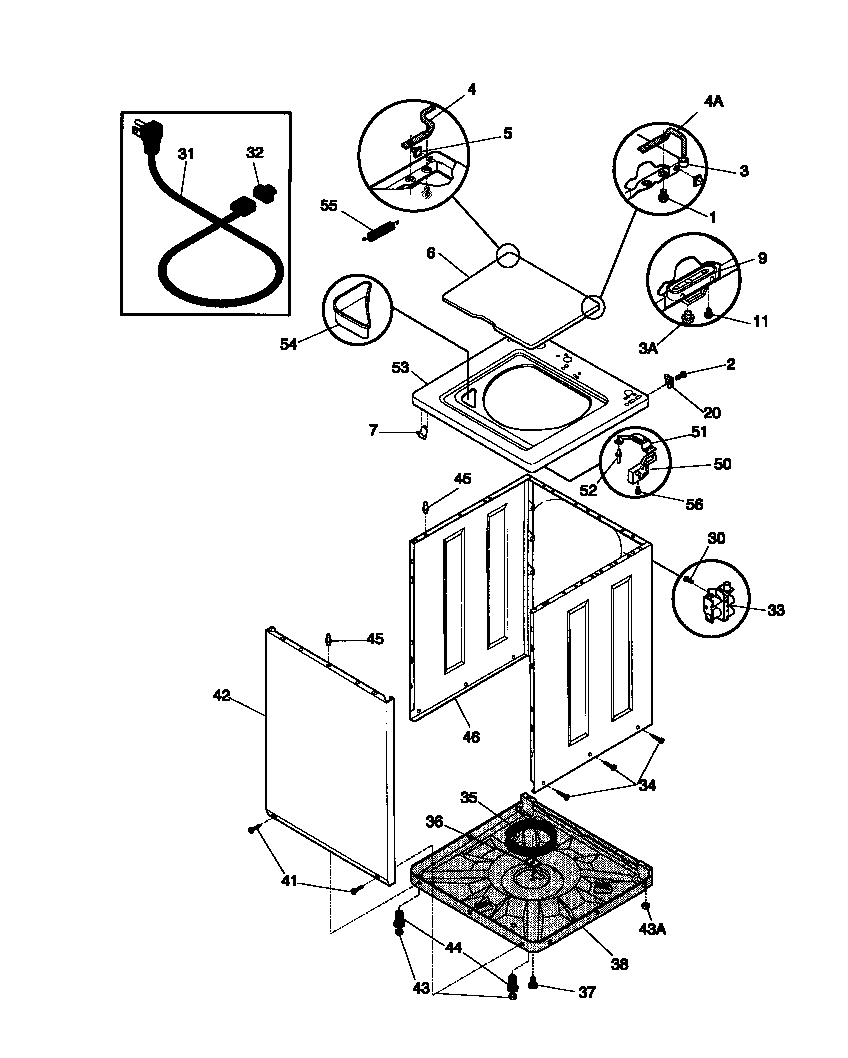

FWS545NBT1 02 – CABINET/TOP

Products

Position	Product
*87240	5303309503 Frigidaire Clip
1	SCREW
2	131168200 Frigidaire Dryer Screw
3A	134075500 Frigidaire Bumper-LID
3	WCI 131433300
4A	WCI 131374210
4	WCI 131385910
5	5303208743 Frigidaire Grommet
6	WCI 131374403
7	3205821 Frigidaire Clip
9	131390000 Frigidaire Door Catch-Strike
11	3204368 Frigidaire Screw-Strike
20	WCI 5303208751
30	131202300 Frigidaire Screw
31	5304505407 Frigidaire Cord
32	5303209428 Frigidaire Serv.Cord Bushing
33	134190200 Frigidaire Washer Water Valve
34	131205500 Frigidaire Screw
35	SNUBBER RING
36	SHIPPING BLOCK
37	WCI 131102900
38	WCI 5303311213
39	131205100 Frigidaire Screw
41	131302800 Frigidaire Drum Vane Screw
42	WCI 131104305
43A	131422200 Frigidaire P-1 Self Level Leg Pad
43	WCI 131422100
44	134548800 Frigidaire Washer Leg Levelling
45	WCI 131346400
46	WCI 131452802
50	WCI 3205646
51	BRACKET-LID LOCK
52	RIVET (3)
53	WCI 131386214
54	WCI 5303208778
55	134890500 Frigidaire Spring
56	131243800 Frigidaire Screw
