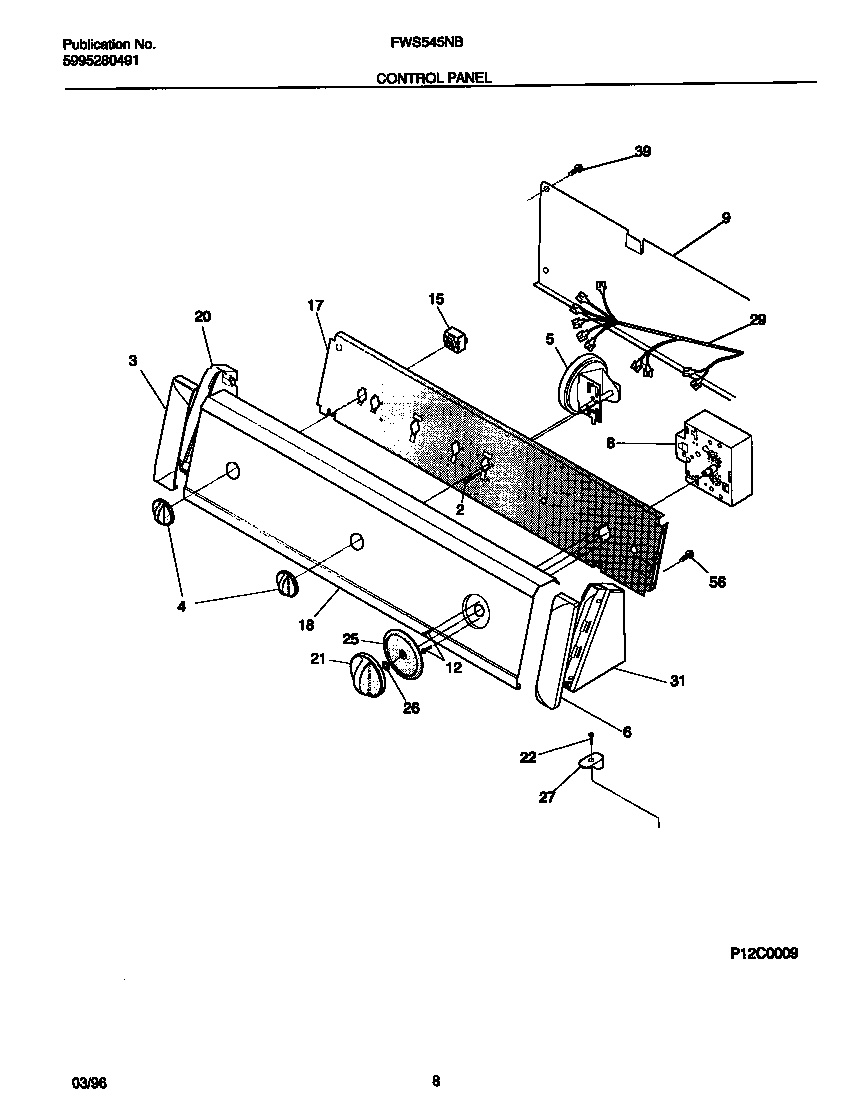

FWS545NBT3 05 – CONTROL PANEL

FWS545NBT3 05 – CONTROL PANEL

Written by

in

FWS545NBT3 05 – CONTROL PANEL

Products

PositionProduct
2131168200 Frigidaire Dryer Screw
3WCI 131122612
4WCI 131141102
5134680100 Frigidaire Pressure Switch
6WCI 131122602
8WCI 131436900
9BACKSHEET
12SCREW (2)
15WCI 131081200
17WCI 131297306
18WCI 131485300
20WCI 131122712
21WCI 131140602
22WCI 131266300
25WCI 131140702
26Spacer,washer ,timer shaft
27CLIP-CONSOLE MTG
29WCI 131520000
31WCI 131122702
39131205100 Frigidaire Screw
56131243800 Frigidaire Screw
