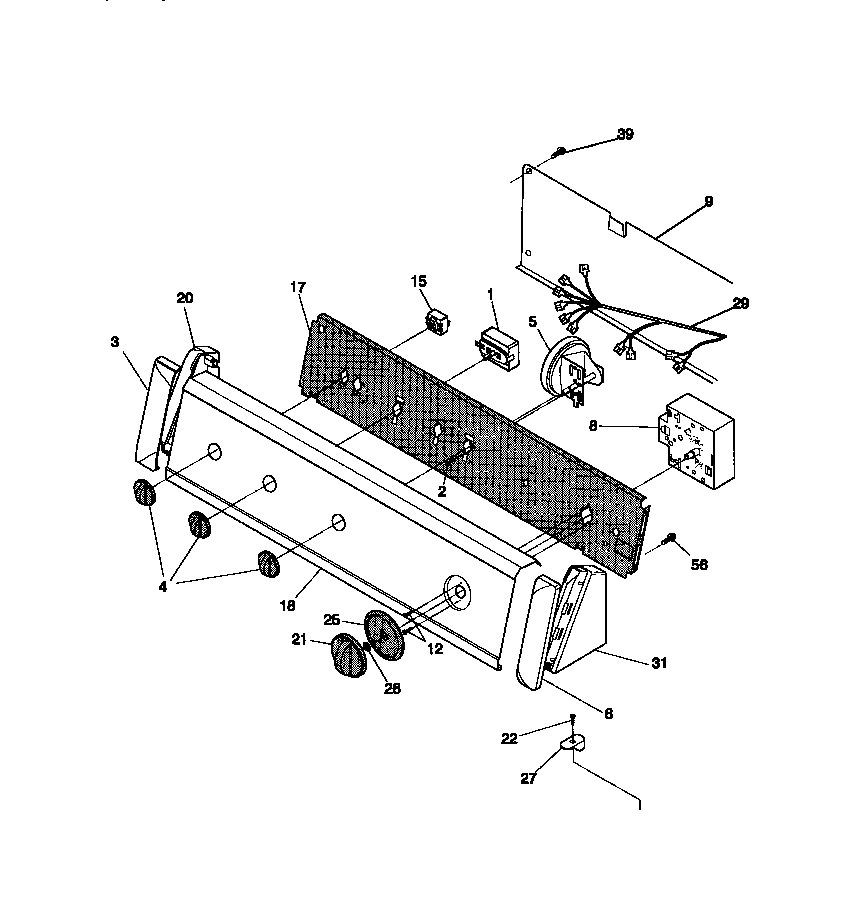

FWS645RBS1 05 – CONTROL PANEL

Products

Position	Product
1	WCI 131120400
2	131168200 Frigidaire Dryer Screw
3	COVER-CAP-LH-WHITE
4	131858004 Frigidaire Control Knob, White
5	134680100 Frigidaire Pressure Switch
6	COVER-CAP-RH-WHITE
8	WCI 131487000
9	BACKSHEET
12	SCREW (2)
15	WCI 131081200
17	WCI 131297306
18	WCI 131253600
20	END CAP-L.H.-WHITE
21	WCI 131140601
22	WCI 131266300
25	WCI 131140701
26	Spacer,washer ,timer shaft
27	CLIP-CONSOLE MTG
29	WCI 131487200
31	END CAP-R.H.-WHITE
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
