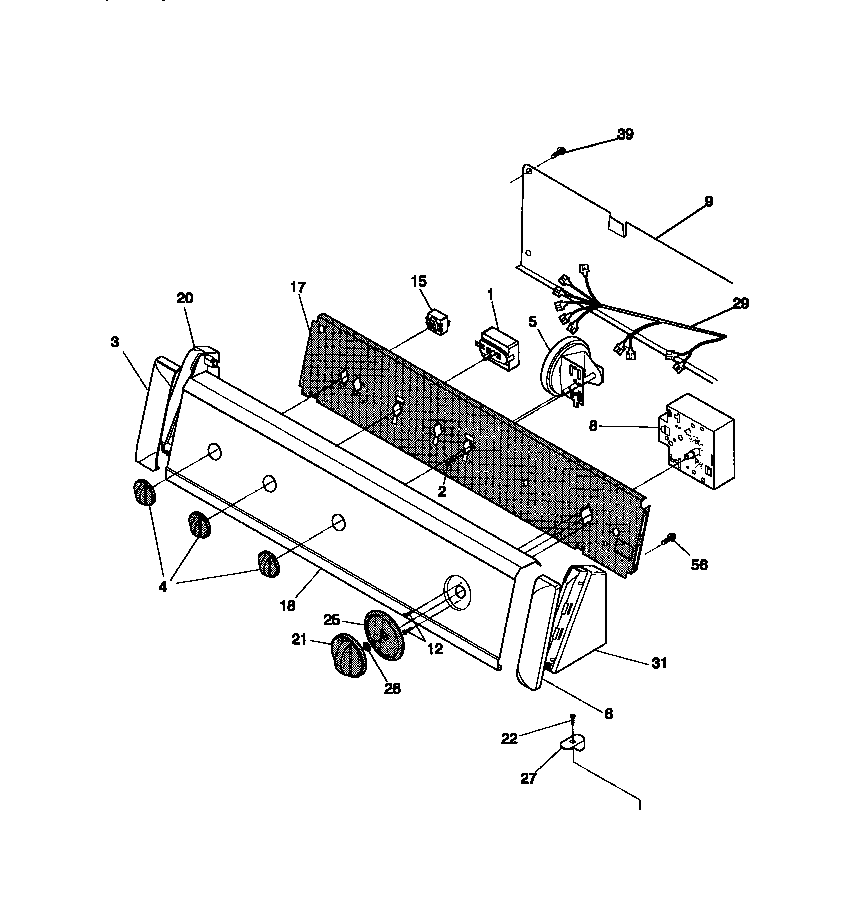

FWS645RBT1 05 – CONTROL PANEL

FWS645RBT1 05 – CONTROL PANEL

Written by

in

FWS645RBT1 05 – CONTROL PANEL

Products

PositionProduct
1WCI 131120400
2131168200 Frigidaire Dryer Screw
3WCI 131122612
4WCI 131141102
5134680100 Frigidaire Pressure Switch
6WCI 131122602
8WCI 131487000
9BACKSHEET
12SCREW (2)
15WCI 131081200
17WCI 131297306
18WCI 131254000
20WCI 131122712
21WCI 131140602
22WCI 131266300
25WCI 131140702
26Spacer,washer ,timer shaft
27CLIP-CONSOLE MTG
29WCI 131487200
31WCI 131122702
39131205100 Frigidaire Screw
56131243800 Frigidaire Screw
