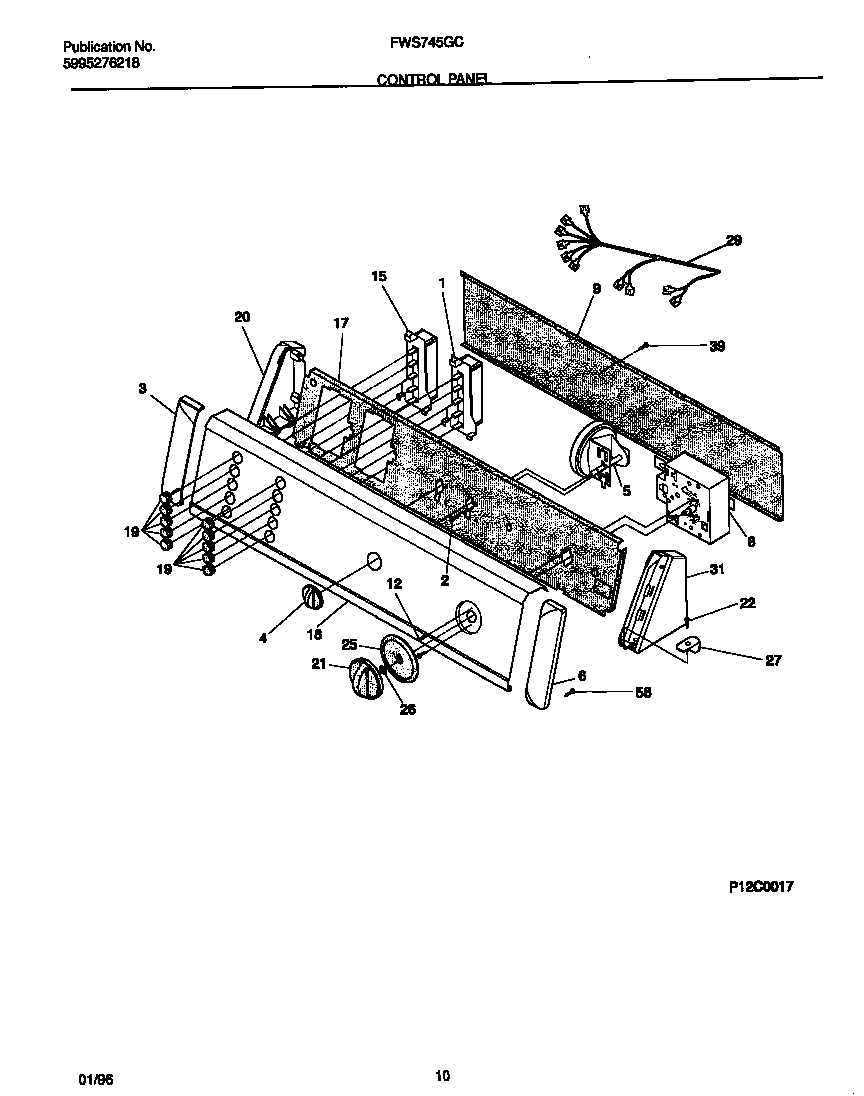

FWS745GCT1 05 – CONTROL PANEL

FWS745GCT1 05 – CONTROL PANEL

Written by

in

FWS745GCT1 05 – CONTROL PANEL

Products

PositionProduct
1WCI 131118100
2131168200 Frigidaire Dryer Screw
3WCI 131122612
4WCI 131141106
5134680100 Frigidaire Pressure Switch
6WCI 131122602
8WCI 131487000
9BACKSHEET
12SCREW (2)
15WCI 131047600
17WCI 131297305
18WCI 131473700
19WCI 131141203
20WCI 131122712
21WCI 131140603
22WCI 131266300
25WCI 131140704
26Spacer,washer ,timer shaft
27CLIP-CONSOLE MTG
29WCI 131510300
31WCI 131122702
39131205100 Frigidaire Screw
56131243800 Frigidaire Screw
