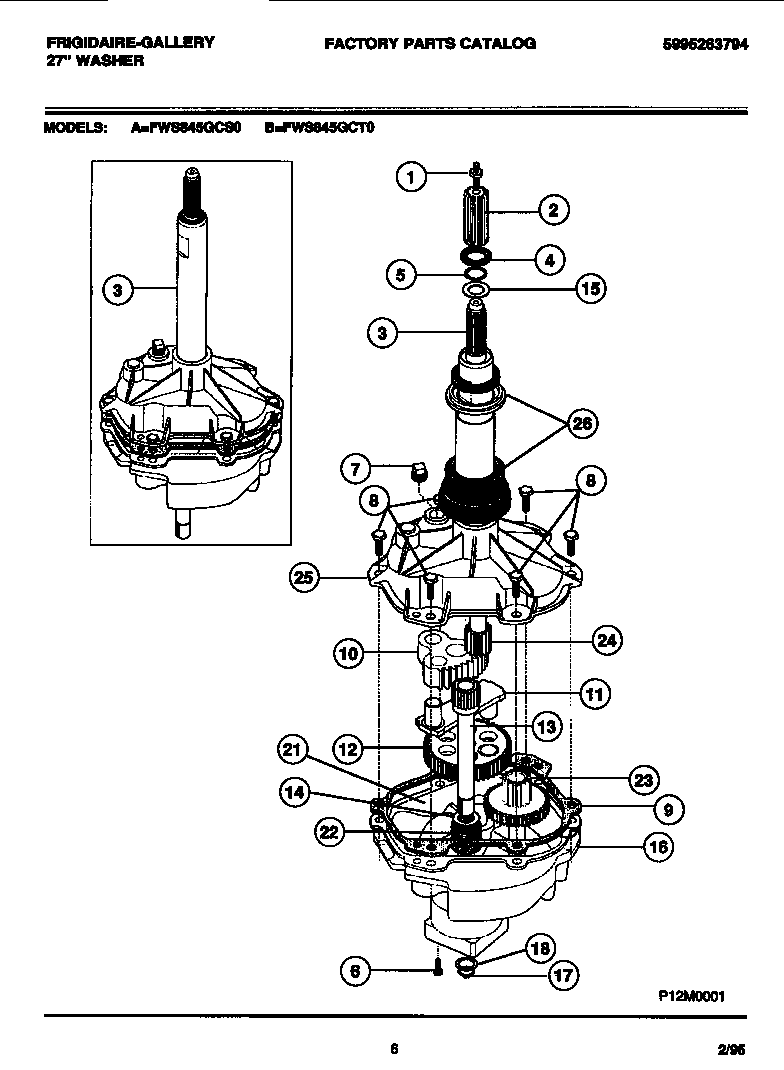

FWS845GCS0 04 – TRANSMISSION

Products

Position	Product
1	WCI 131206800
2	134418700 Frigidaire Agitator Drive Hub
3	TRANSMISSION COMPL.
4	5303161307 Frigidaire Dryer Seal Assembly
6	134197900 Frigidaire Screw
7	WCI 5303161224
8	SCREW (6)
9	GASKET
10	WCI 5308011268
11	WCI 5303161169
12	WCI 5308015496
13	WCI 5308014905
14	WCI 5303161226
15	THRUST WASHER
16	WCI 131362000
17	WCI 5303161223
18	WCI 5308002475
21	OIL-TRANSMISSION (1 QT)
22	WCI 131375100
23	WCI 5303161175
24	134736400 Frigidaire Gear Case
25	WCI 5303294437
26	SEAL-TUB
