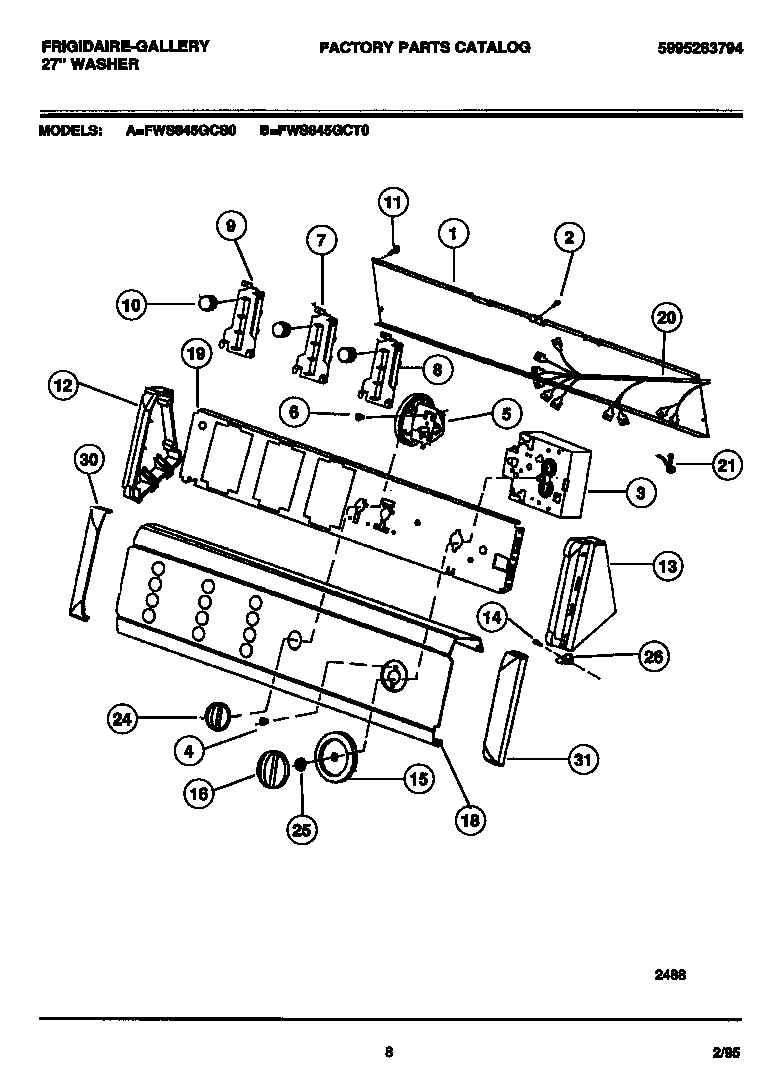

FWS845GCS0 05 – CONSOLE & CONTROLS

Products

Position	Product
1	BACKSHEET
2	131243700 Frigidaire Screw
3	WCI 131238300
4	SCREW (2)
5	134680100 Frigidaire Pressure Switch
6	131168200 Frigidaire Dryer Screw
7	WCI 131118100
8	WCI 131169100
9	WCI 131047600
10	WCI 131141201
11	131205100 Frigidaire Screw
12	END CAP-L.H.-WHITE
13	END CAP-R.H.-WHITE
14	WCI 5303289526
15	WCI 131140703
16	WCI 131140601
18	WCI 131375600
19	BRACKET-CONTROLS
20	WCI 131169000
21	131243800 Frigidaire Screw
24	131858004 Frigidaire Control Knob, White
25	Spacer,washer ,timer shaft
26	CLIP-CONSOLE MTG
30	COVER-CAP-LH-WHITE
31	COVER-CAP-RH-WHITE
