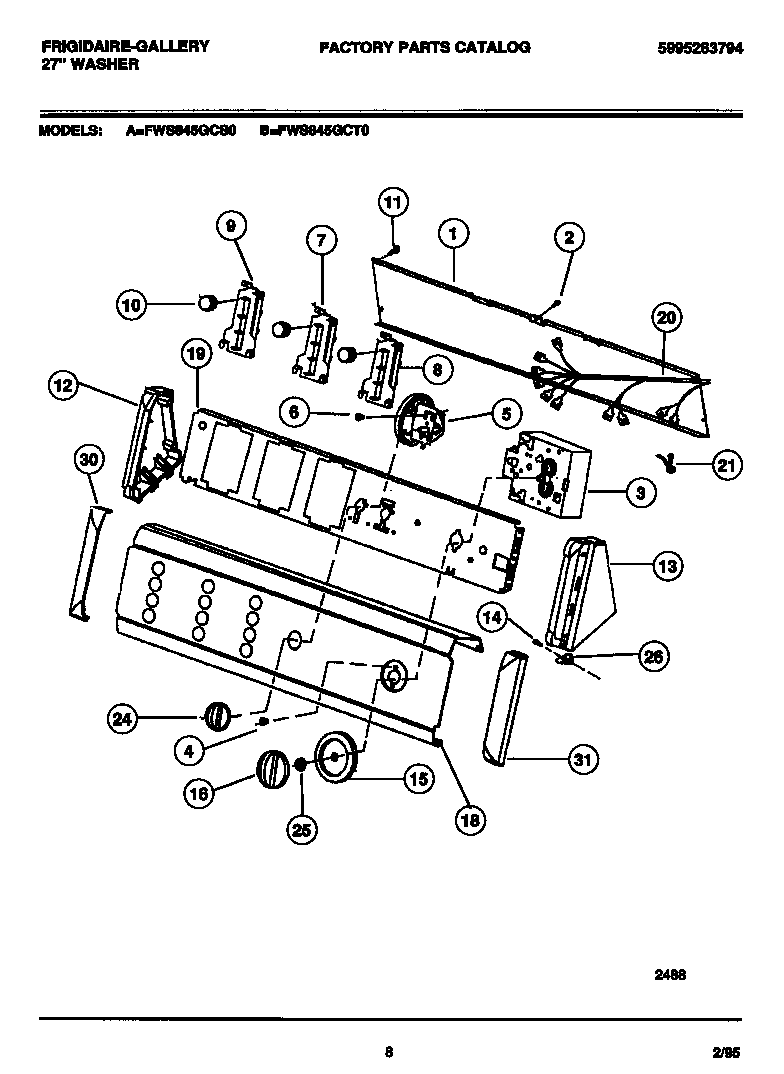

FWS845GCT0 05 – CONSOLE & CONTROLS

FWS845GCT0 05 – CONSOLE & CONTROLS

Written by

in

FWS845GCT0 05 – CONSOLE & CONTROLS

Products

PositionProduct
1BACKSHEET
2131243700 Frigidaire Screw
3WCI 131238300
4SCREW (2)
5134680100 Frigidaire Pressure Switch
6131168200 Frigidaire Dryer Screw
7WCI 131118100
8WCI 131169100
9WCI 131047600
10WCI 131141203
11131205100 Frigidaire Screw
12WCI 131122712
13WCI 131122702
14WCI 5303289526
15WCI 131140704
16WCI 131140603
18WCI 131380100
19BRACKET-CONTROLS
20WCI 131169000
21131243800 Frigidaire Screw
24WCI 131141106
25Spacer,washer ,timer shaft
26CLIP-CONSOLE MTG
30WCI 131122612
31WCI 131122602
