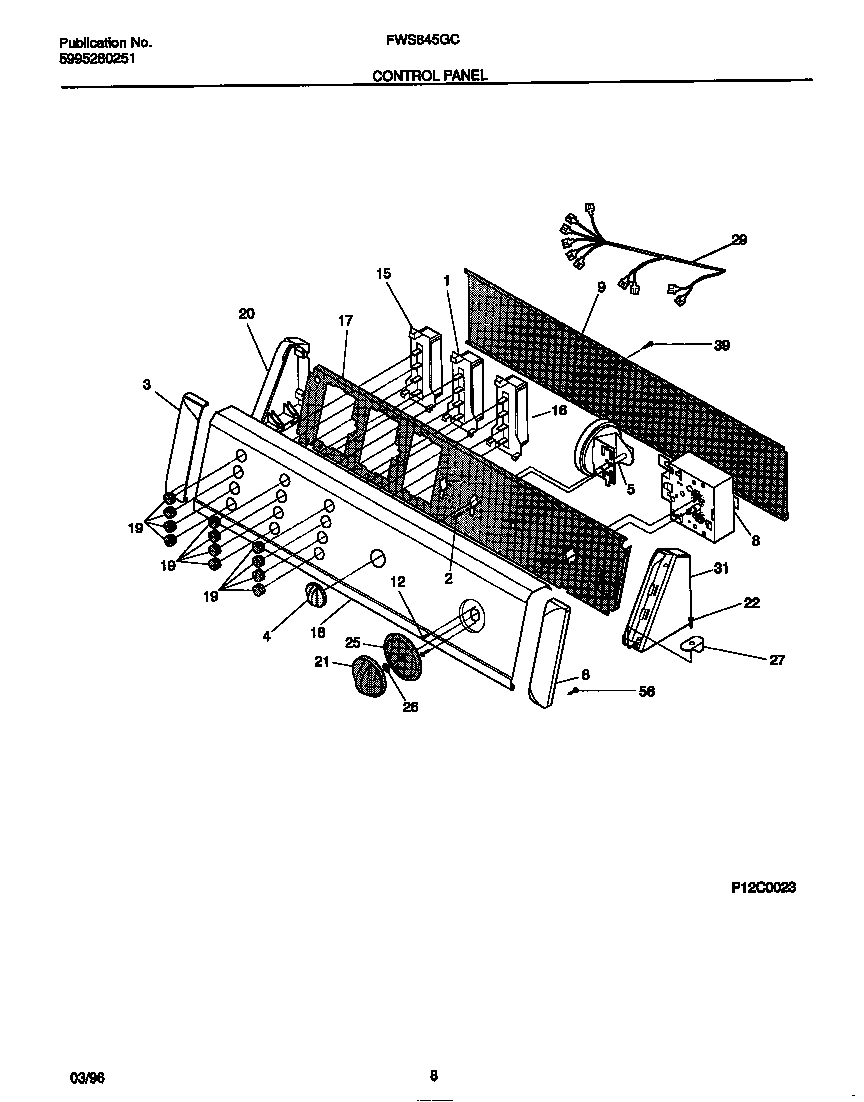

FWS845GCT3 05 – CONTROL PANEL

FWS845GCT3 05 – CONTROL PANEL

Written by

in

FWS845GCT3 05 – CONTROL PANEL

Products

PositionProduct
1WCI 131118100
2131168200 Frigidaire Dryer Screw
3WCI 131122612
4WCI 131141106
5134680100 Frigidaire Pressure Switch
6WCI 131122602
8WCI 131487000
9BACKSHEET
12SCREW (2)
15WCI 131047600
16WCI 131169100
17BRACKET-CONTROLS
18WCI 131477300
19WCI 131141203
20WCI 131122712
21WCI 131140603
22WCI 131266300
25WCI 131140704
26Spacer,washer ,timer shaft
27CLIP-CONSOLE MTG
29WCI 131520700
31WCI 131122702
39131205100 Frigidaire Screw
56131243800 Frigidaire Screw
