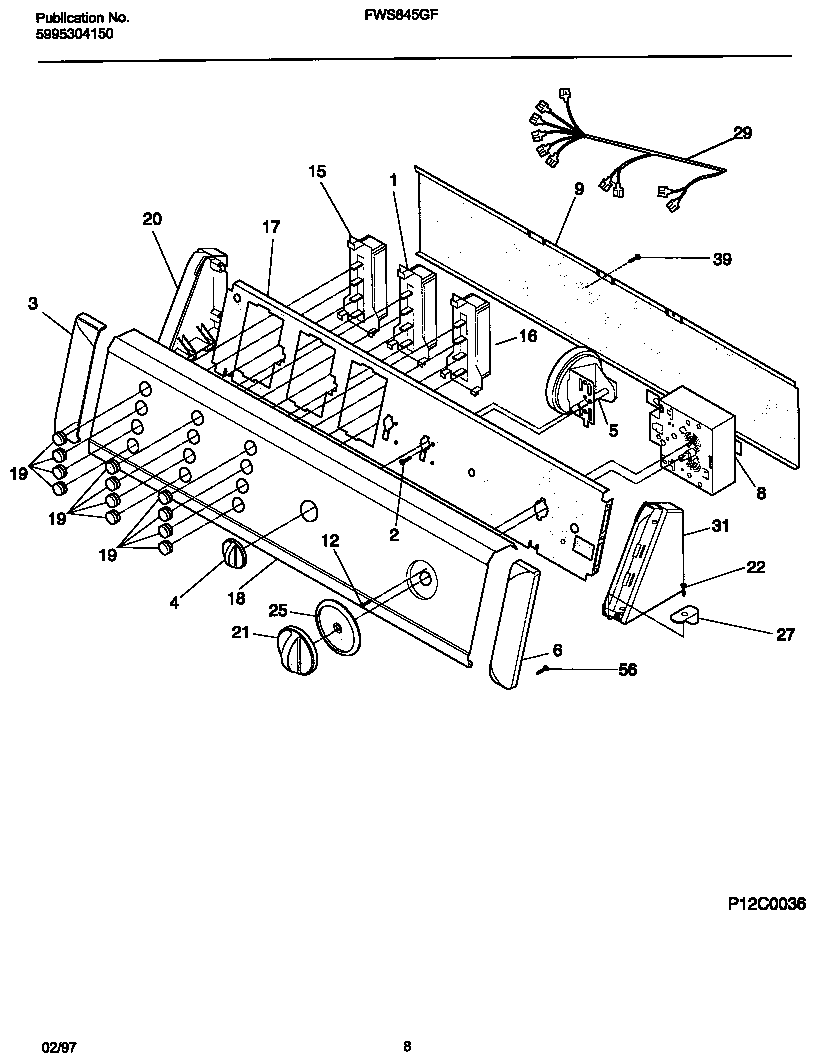

FWS845GFT0 05 – CONTROL PANEL

FWS845GFT0 05 – CONTROL PANEL

Written by

in

FWS845GFT0 05 – CONTROL PANEL

Products

PositionProduct
1WCI 131118100
2WCI 073325-000
3WCI 131122612
4WCI 131141106
5134680100 Frigidaire Pressure Switch
6WCI 131122602
8WCI 131581602
9BACKSHEET
12131243800 Frigidaire Screw
15WCI 131047600
16WCI 131169100
17WCI 131580003
18WCI 131682500
19WCI 131141203
20WCI 131122712
21WCI 131592003
22WCI 131266300
25WCI 131592104
27CLIP-CONSOLE MTG
29WCI 131654500
31WCI 131122702
39131243700 Frigidaire Screw
56131205100 Frigidaire Screw
