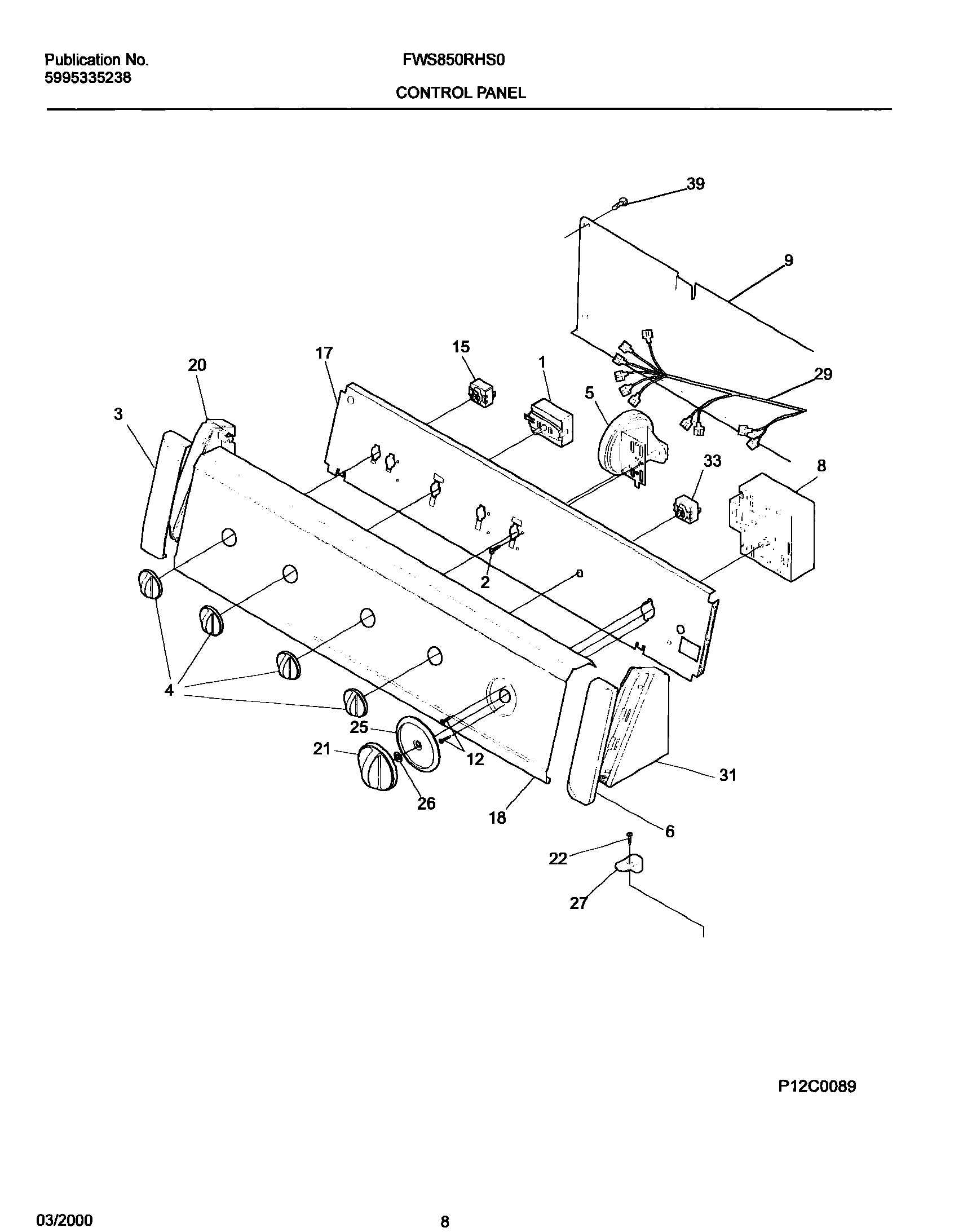

FWS850RHS0 09 – CONTROL PANEL

Products

Position	Product
NI	WCI 131507700
1	WCI 131893500
2	131168200 Frigidaire Dryer Screw
3	COVER-CAP-LH-WHITE
4	131858004 Frigidaire Control Knob, White
5	134680100 Frigidaire Pressure Switch
6	COVER-CAP-RH-WHITE
8	WCI 131897600
9	BACKSHEET
12	131243800 Frigidaire Screw
15	WCI 131081200
17	WCI 131728900
18	WCI 131937000
20	END CAP-L.H.-WHITE
21	WCI 131140601
22	WCI 131266300
25	WCI 131140705
26	Spacer,washer ,timer shaft
27	CLIP-CONSOLE MTG
29	WCI 131898800
31	END CAP-R.H.-WHITE
33	WCI 131047000
39	131205100 Frigidaire Screw
