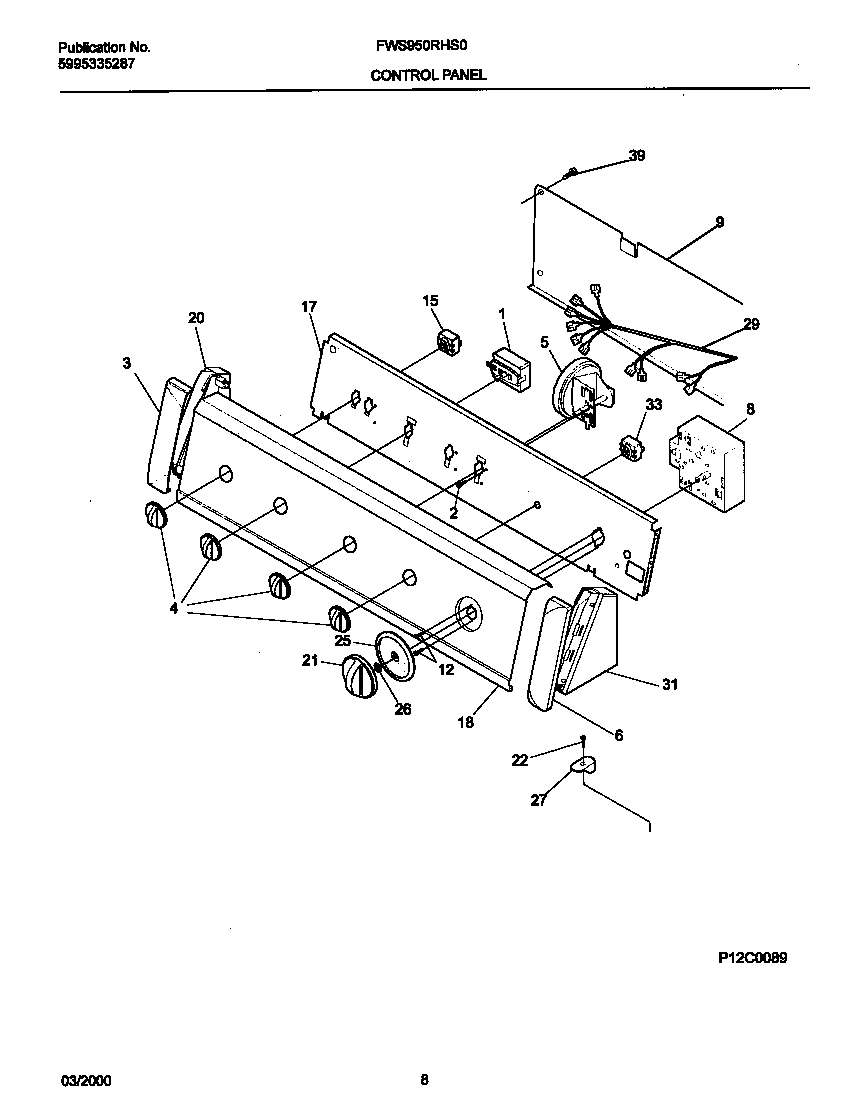

FWS950RHS0 05 – P12C0089 CONTROL PANEL

Products

Position	Product
*04810	WCI 131507700
1	WCI 131893500
2	131168200 Frigidaire Dryer Screw
3	COVER-CAP-LH-WHITE
4	131858004 Frigidaire Control Knob, White
5	134680100 Frigidaire Pressure Switch
6	COVER-CAP-RH-WHITE
8	WCI 131897600
9	BACKSHEET
12	131243800 Frigidaire Screw
15	WCI 131858100
17	WCI 131728900
18	WCI 131937200
20	END CAP-L.H.-WHITE
21	WCI 131140601
22	WCI 131266300
25	WCI 131140705
26	Spacer,washer ,timer shaft
27	CLIP-CONSOLE MTG
29	WCI 131941300
31	END CAP-R.H.-WHITE
33	WCI 131047000
39	131205100 Frigidaire Screw
