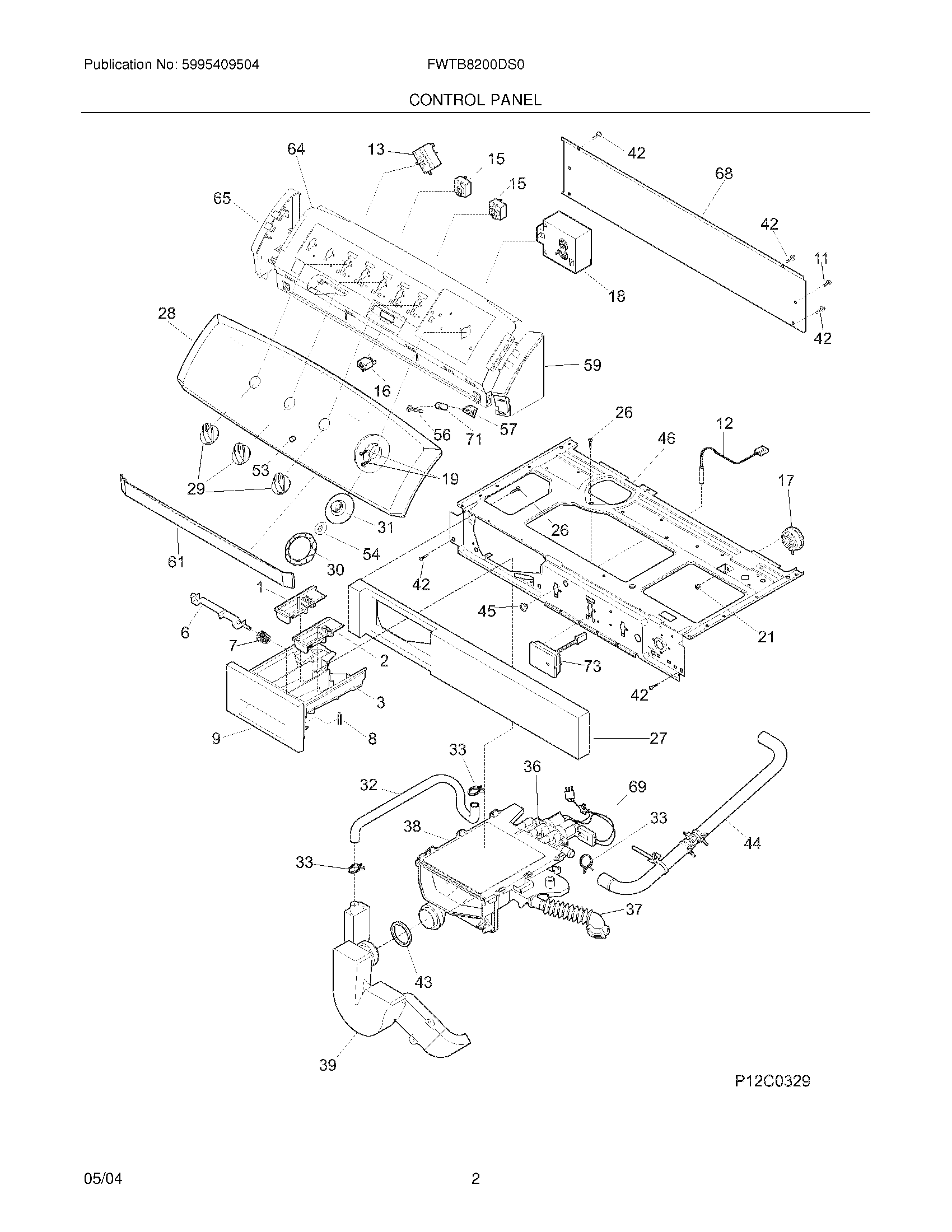

FWTB8200DS0 03 – CONTROL PANEL

Products

Position	Product
NI	WCI 131908800
NI	WCI 134360000
NI	WCI 131931201
NI	Clamp,siphon/bellows
1	WCI 131272100
2	WCI 131272000
3	WCI 131271910
6	WCI 131714900
7	WCI 131427500
8	WCI 131373800
9	WCI 131729500
11	131205100 Frigidaire Screw
12	WCI 131505901
13	WCI 131891800
15	Switch,2 position
16	Lamp,status light
17	WCI 134381100
18	WCI 134014700
19	131243800 Frigidaire Screw
21	131243700 Frigidaire Screw
26	WCI 131823400
27	PANEL-DISPENSER DRAWER
28	WCI 134379300
29	ER134844413 Dryer Knob
30	WCI 134034803
31	WCI 134034700
32	WCI 131786100
33	134737300 Frigidaire Clamp
36	131974700 Frigidaire Dispensing Valve Assembly
37	131271600 Frigidaire Washer Dryer Tub Hose
38	WCI 134266700
39	WCI 131863300
42	131168200 Frigidaire Dryer Screw
43	WCI 131749200
44	WCI 131899800
45	Bushing,idler
46	WCI 134191412
53	Lens,status light ,clear
54	Spacer,washer ,timer shaft
56	WCI 131266330
57	CLIP-CONSOLE MTG
59	WCI 134019600
61	WCI 134019900
64	WCI 131993040
65	WCI 134019610
68	WCI 131992900
69	WCI 131908000
71	WCI 134096100
73	WCI 131963800
