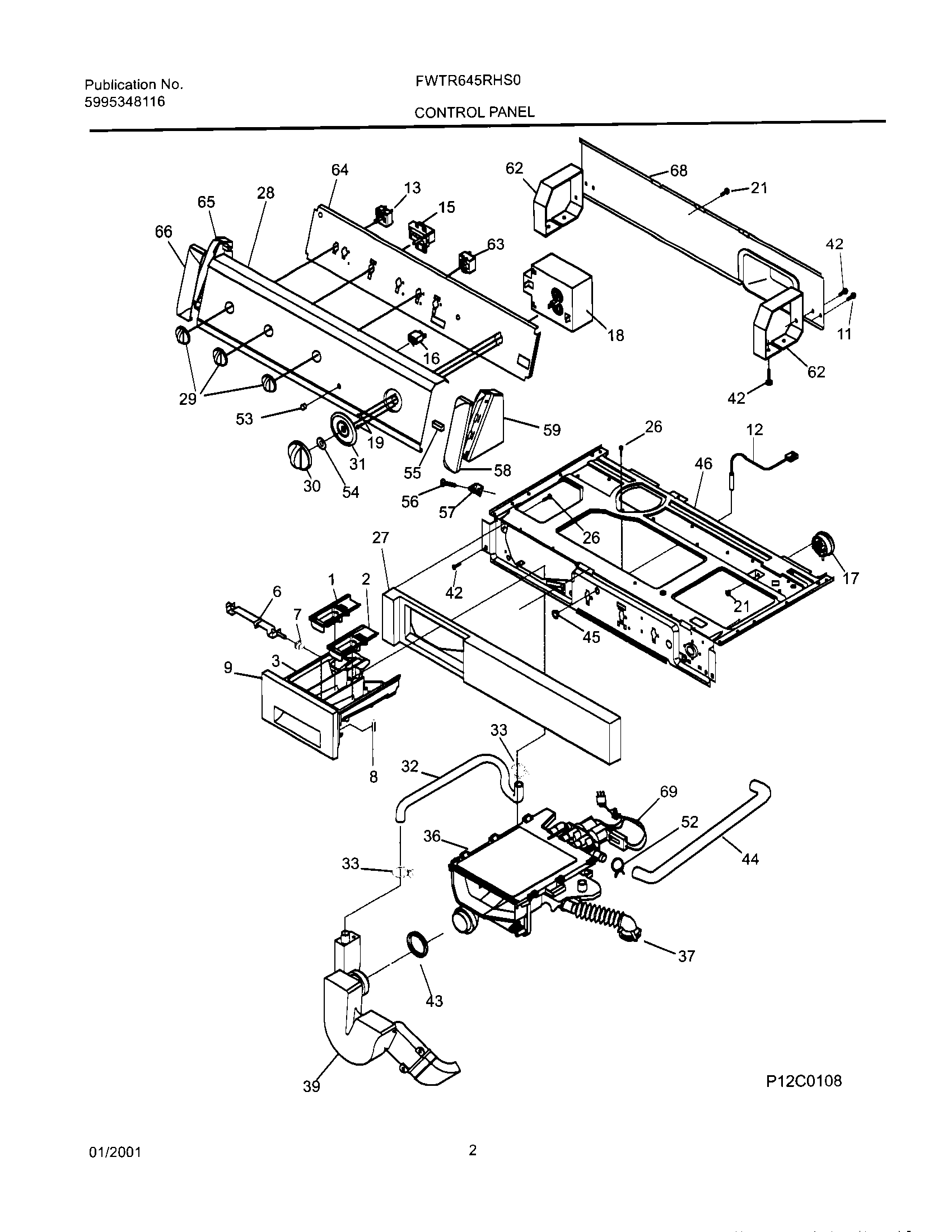

FWTR645RHS0 03 – CONTROL PANEL

Products

Position	Product
NI	Clamp,siphon/bellows
NI	WCI 131169500
NI	WCI 131872200
NI	WCI 131912600
1	WCI 131272100
2	WCI 131272000
3	WCI 131271900
6	WCI 131714900
7	WCI 131427500
8	WCI 131373800
9	WCI 131729500
11	131205100 Frigidaire Screw
12	WCI 131505900
13	WCI 131729000
16	Lamp,status light
17	WCI 131273700
18	137394200 Frigidaire Washer Timer Control
19	131243800 Frigidaire Screw
21	131243700 Frigidaire Screw
26	WCI 131823400
27	PANEL-DISPENSER DRAWER
28	WCI 131917700
29	131858004 Frigidaire Control Knob, White
30	WCI 131140601
31	WCI 131140705
32	WCI 131786100
33	WCI 131306215
36	WCI 131803700
37	131271600 Frigidaire Washer Dryer Tub Hose
39	WCI 131863300
42	131168200 Frigidaire Dryer Screw
43	WCI 131749200
44	WCI 131786000
45	Bushing,idler
46	WCI 131810012
52	WCI 131306242
53	Lens,status light ,clear
54	Spacer,washer ,timer shaft
55	WCI 131507701
56	WCI 131266310
57	CLIP-CONSOLE MTG
58	COVER-CAP-RH-WHITE
59	END CAP-R.H.-WHITE
62	WCI 131721500
63	Switch,2 position
64	WCI 131728900
65	END CAP-L.H.-WHITE
66	COVER-CAP-LH-WHITE
68	WCI 131141730
69	Wiring Harness,dispenser valve
