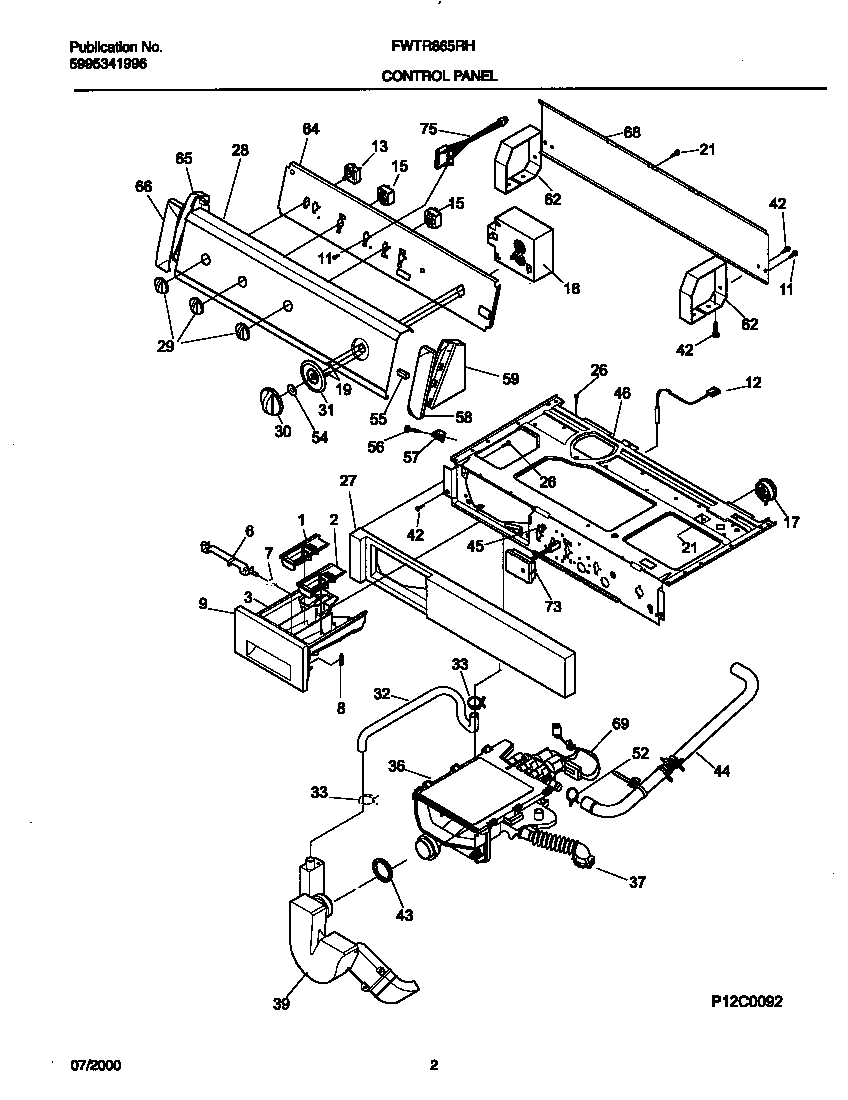

FWTR865RHS0 02 – CONTROL PANEL

Products

Position	Product
*34164	WCI 131931200
*34162	WCI 131908800
*34160	Clamp,siphon/bellows
*34163	WCI 131891000
*34161	WCI 131908400
1	WCI 131272100
2	WCI 131272000
3	WCI 131444814
6	WCI 131714900
7	WCI 131427500
8	WCI 131373800
9	WCI 131729500
11	131205100 Frigidaire Screw
12	WCI 131505900
13	Switch,temperature ,7 position
15	Switch,2 position
17	WCI 131273700
18	WCI 131854300
19	131243800 Frigidaire Screw
21	131243700 Frigidaire Screw
26	WCI 131823400
27	PANEL-DISPENSER DRAWER
28	WCI 131938000
29	131858004 Frigidaire Control Knob, White
30	WCI 131140601
31	WCI 131140705
32	WCI 131786100
33	WCI 131306215
36	131974700 Frigidaire Dispensing Valve Assembly
37	131271600 Frigidaire Washer Dryer Tub Hose
39	WCI 131863300
42	131168200 Frigidaire Dryer Screw
43	WCI 131749200
44	WCI 131899800
45	Bushing,idler
46	WCI 131810012
52	WCI 131306242
54	Spacer,washer ,timer shaft
55	WCI 131507701
56	WCI 131266310
57	CLIP-CONSOLE MTG
58	COVER-CAP-RH-WHITE
59	END CAP-R.H.-WHITE
62	WCI 131721500
64	WCI 131728906
65	END CAP-L.H.-WHITE
66	COVER-CAP-LH-WHITE
68	WCI 131141730
69	WCI 131908000
73	WCI 131963800
75	WCI 131949001
