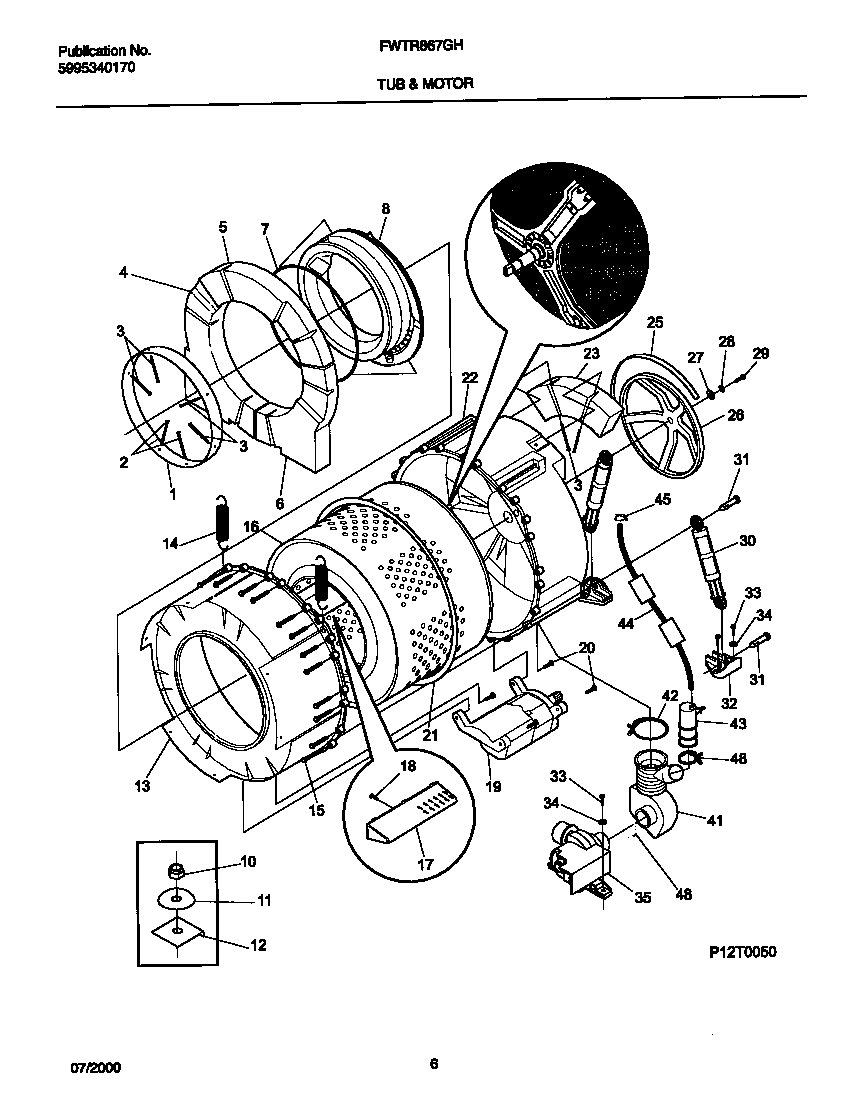

FWTR867GHQ0 04 – WSHR TUB,MOTORadmin2025-04-26T08:39:21+00:00FWTR867GHQ0 04 – WSHR TUB,MOTOR
Products
| Position | Product |
|---|
| *18128 | 131560000 Frigidaire Lower Sleeve Spring |
| *18129 | 131592200 Frigidaire Sleeve-Upper Spring |
| 1 | WCI 131793400 |
| 2 | WCI 131793301 |
| 3 | WCI 131793300 |
| 4 | WCI 131276500 |
| 5 | WCI 131276600 |
| 6 | WCI 131851900 |
| 7 | 131277300 Frigidaire Boot Retainer Spring |
| 8 | 5303937187 Frigidaire Washer Door Gasket Seal Bellows Kit |
| 10 | Nut,hex ,1/4-20 UNC-2B ,(2) |
| 11 | 131276900 Frigidaire Washer Spring |
| 12 | WCI 131793500 |
| 13 | 131618600 Frigidaire Front Shell TUB+O/S2 |
| 14 | 134144700 Frigidaire Washer Suspension Spring |
| 15 | 131303900 Frigidaire Screw |
| 16 | 131618500 Frigidaire Spin Tub + O/S2 |
| 17 | 131274600 Frigidaire Baffle |
| 18 | 131302800 Frigidaire Drum Vane Screw |
| 19 | WCI 131770600 |
| 20 | 131303500 Frigidaire Screw |
| 21 | WCI 131275900 |
| 22 | Shell,outer tub ,rear ,with bearing |
| 23 | WCI 131709300 |
| 25 | 134051000 Frigidaire Washer Drive Belt |
| 26 | WCI 131883400 |
| 27 | Washer,0.41 x 1.50 ,0.12 thick |
| 28 | WCI 131304500 |
| 29 | Screw,pulley mtg. ,m10 x 0.92 ,metric |
| 30 | 5304485917 Frigidaire Washer Shock Absorber Air Stabilizer |
| 31 | 131268300 Frigidaire Leveling Pin |
| 32 | Bracket,shock mtg. |
| 33 | 131202300 Frigidaire Screw |
| 34 | 5303304015 Frigidaire Oven Washer |
| 35 | 137108000 Frigidaire Assembly Water Drain Pump and Motor |
| 41 | 131784700 Frigidaire Coin Trap Hose |
| 42 | 134737300 Frigidaire Clamp |
| 43 | WCI 131277500 |
| 44 | Hose,air pressure |
| 45 | 131306202 Frigidaire Clamp |
| 48 | 131306234 Frigidaire Clamp Pump |
