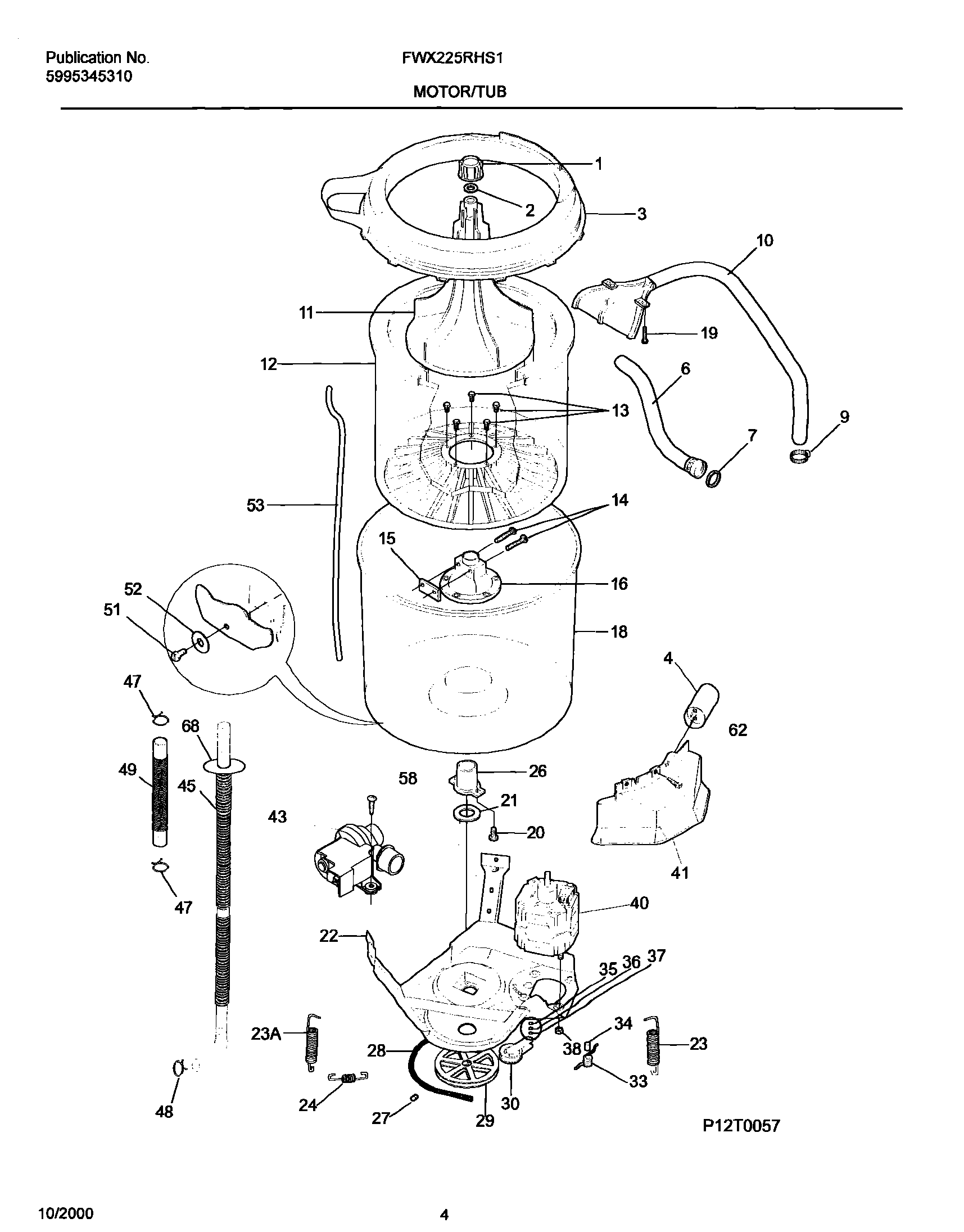

FWX225RHS1 05 – MOTOR/TUB

Products

Position	Product
NI	INSERT-SPRING ADJ
NI	WCI 131462500
NI	WCI 131506500
NI	WCI 131663500
NI	5303309503 Frigidaire Clip
NI	131901400 Frigidaire Seal
1	3204395 Frigidaire Agitator Cap
2	WCI 3204396
3	131398303 Frigidaire Tub Ring
4	131212301 Frigidaire Washer Capacitor Motor
6	5303912532 Frigidaire Hose Inlet 60"
7	5303161296 Frigidaire Washer-Inlet Hose (1Piece)
9	5304488479 Frigidaire Washer Hose Clamp
10	WCI 131726300
11	ASSY-AGITATOR-STANDARD-SLIM
12	TUB-SPIN, AND TRUNNION
13	137546400 Frigidaire Screw 5/165-18 X .625
14	137539500 Frigidaire Washer Trunnion Lock Plate Bolt
15	137107000 Frigidaire Plate
16	131545101 Frigidaire Dryer Washer Transmission Trunnion Nut
18	TUB-SPLASH, W/AIR DOME, BRNG
19	131205300 Frigidaire Screw
20	3205150 Frigidaire Tub Bearing Screw
21	5308002401 Frigidaire Washer Primary
22	WCI 131373610
23A	134885900 Frigidaire Spring
23	134886600 Frigidaire Spring Primary
24	WCI 131373900
26	3204405 Frigidaire Outer Tub Spin Bearing
27	5303270023 Frigidaire Screw Set
28	WASHER BELT
29	WCI 131498301
30	WCI 131862900
33	TORSION SPRING
34	WCI 3204426
35	3161433 Frigidaire Retainer
36	WASHER
37	SPRING WASHER
38	WCI 5303318708
40	134156400 Frigidaire Primary Motor
41	131513300 Frigidaire Shield
43	137221600 Frigidaire Washer Drain Pump
45	131461200 Frigidaire Washer Drain Hose
47	131306234 Frigidaire Clamp Pump
49	131494800 Frigidaire Hose-Pump P1 to Tub
51	WCI 131659000
52	WCI 131315800
53	5304401845 Frigidaire Tube Pressure
58	WCI 131464900
62	131302800 Frigidaire Drum Vane Screw
68	131707800 Frigidaire Drain Hose Ring
