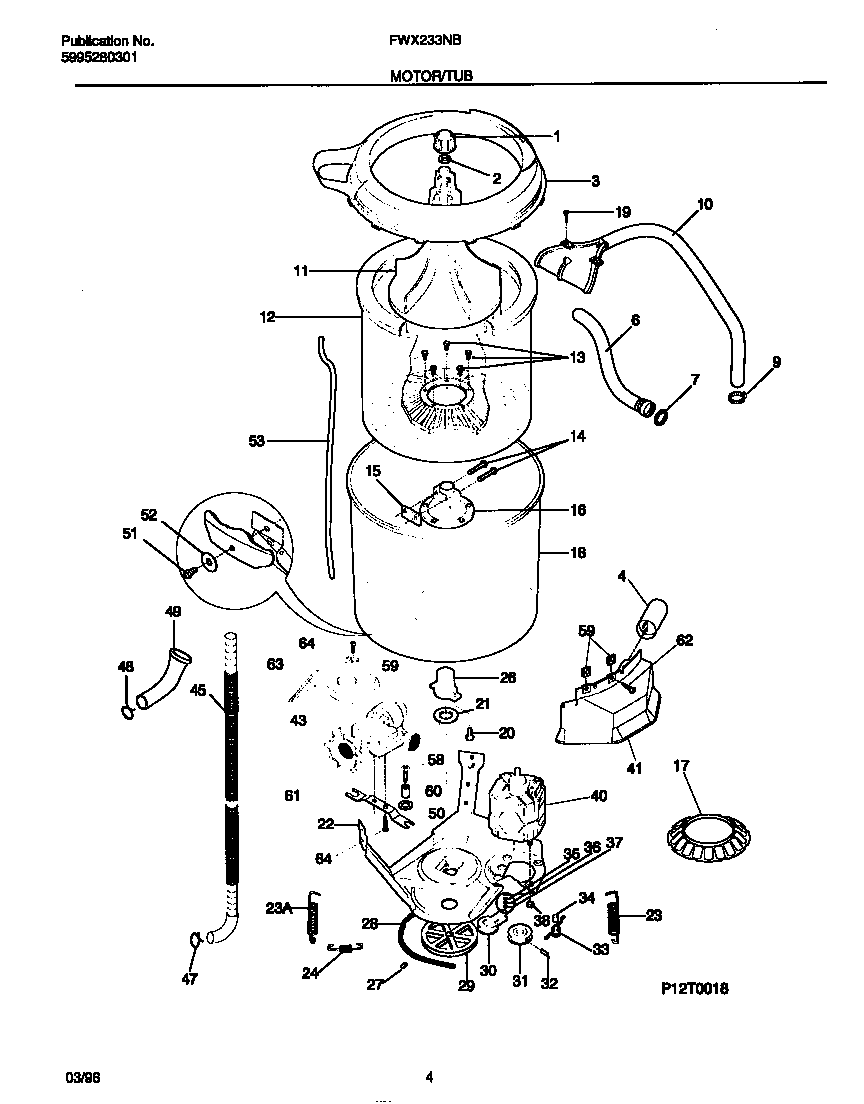

FWX233NBS3 03 – MOTOR/TUB

Products

Position	Product
*30161	INSERT-SPRING ADJ
1	3204395 Frigidaire Agitator Cap
2	WCI 3204396
3	131398303 Frigidaire Tub Ring
4	131212301 Frigidaire Washer Capacitor Motor
6	5303912532 Frigidaire Hose Inlet 60"
7	5303161296 Frigidaire Washer-Inlet Hose (1Piece)
9	5304488479 Frigidaire Washer Hose Clamp
10	NOZZLE & HOSE ASSY
11	WCI 3204401
12	TUB-SPIN, AND TRUNNION
13	137546400 Frigidaire Screw 5/165-18 X .625
14	137539500 Frigidaire Washer Trunnion Lock Plate Bolt
15	137107000 Frigidaire Plate
16	131545101 Frigidaire Dryer Washer Transmission Trunnion Nut
17	WCI 131076600
18	WCI 131444900
19	131205300 Frigidaire Screw
20	3205150 Frigidaire Tub Bearing Screw
21	5308002401 Frigidaire Washer Primary
22	WCI 131373610
23	134886600 Frigidaire Spring Primary
23	134885900 Frigidaire Spring
24	WCI 131373900
26	3204405 Frigidaire Outer Tub Spin Bearing
27	5303270023 Frigidaire Screw Set
28	WASHER BELT
29	WCI 131498300
30	WCI 3204422
31	WCI 3204423
32	WCI 3204424
33	TORSION SPRING
34	WCI 3204426
35	3161433 Frigidaire Retainer
36	WASHER
37	SPRING WASHER
38	HEX NUT
40	WCI 131449700
41	131513300 Frigidaire Shield
43	WCI 131268401
45	WCI 131506500
45	131461200 Frigidaire Washer Drain Hose
47	131306234 Frigidaire Clamp Pump
49	WCI 131434500
50	WCI 131268600
51	WCI 3204459
52	WCI 131315800
53	5304401845 Frigidaire Tube Pressure
58	WCI 131464900
59	WCI 5303283052
60	WCI 131268700
61	WCI 131268500
62	131420300 Frigidaire Screw
63	WCI 131494300
64	5303283072 Frigidaire Shield Screw
