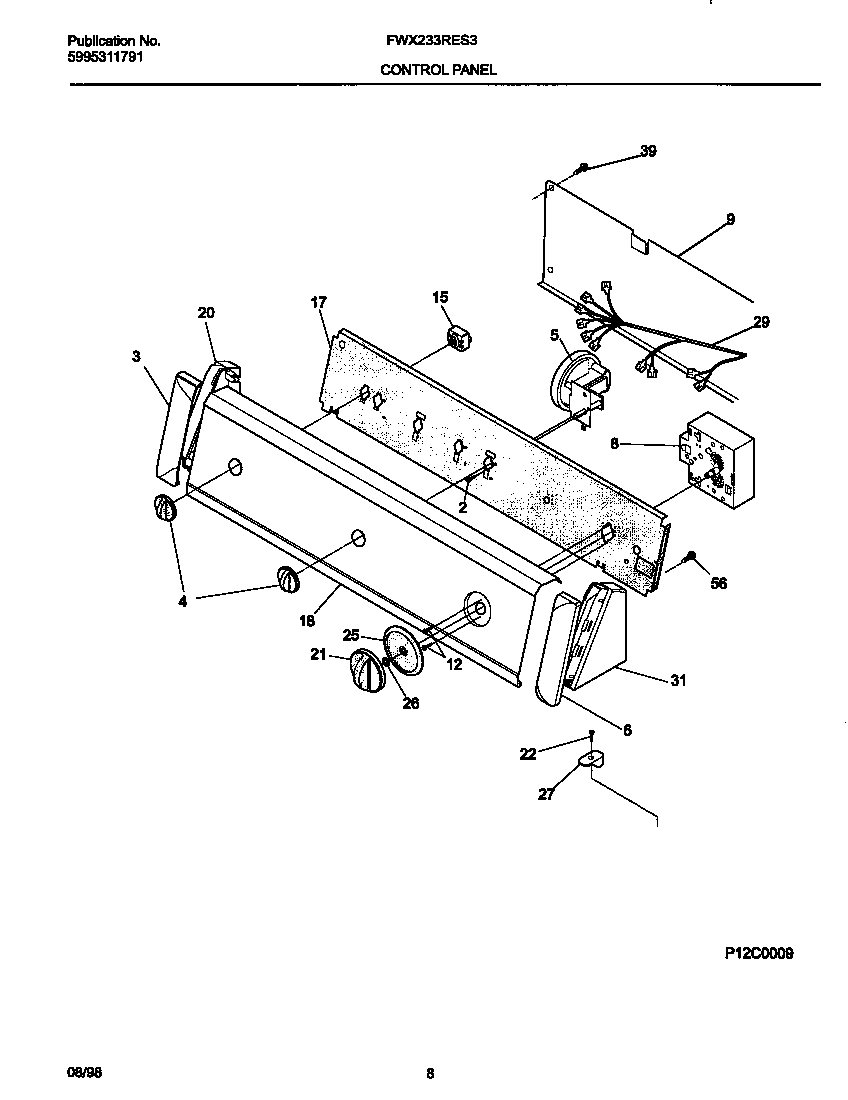

FWX233RES3 05 – CONTROL PANEL

Products

Position	Product
*33523	WCI 131507700
2	131168200 Frigidaire Dryer Screw
3	COVER-CAP-LH-WHITE
4	131858004 Frigidaire Control Knob, White
5	WCI 131047500
6	COVER-CAP-RH-WHITE
8	WASHER TIMER
9	BACKSHEET
12	218359202 Frigidaire Refrigerator Screw
15	WCI 131047000
17	WCI 131580006
18	WCI 131597600
20	END CAP-L.H.-WHITE
21	WCI 131592001
22	WCI 131266300
25	WCI 131592101
26	Spacer,washer ,timer shaft
27	CLIP-CONSOLE MTG
29	WCI 131758800
31	END CAP-R.H.-WHITE
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
