FWX433RBT1 05 – CONSOLE & CONTROLS – Aparts

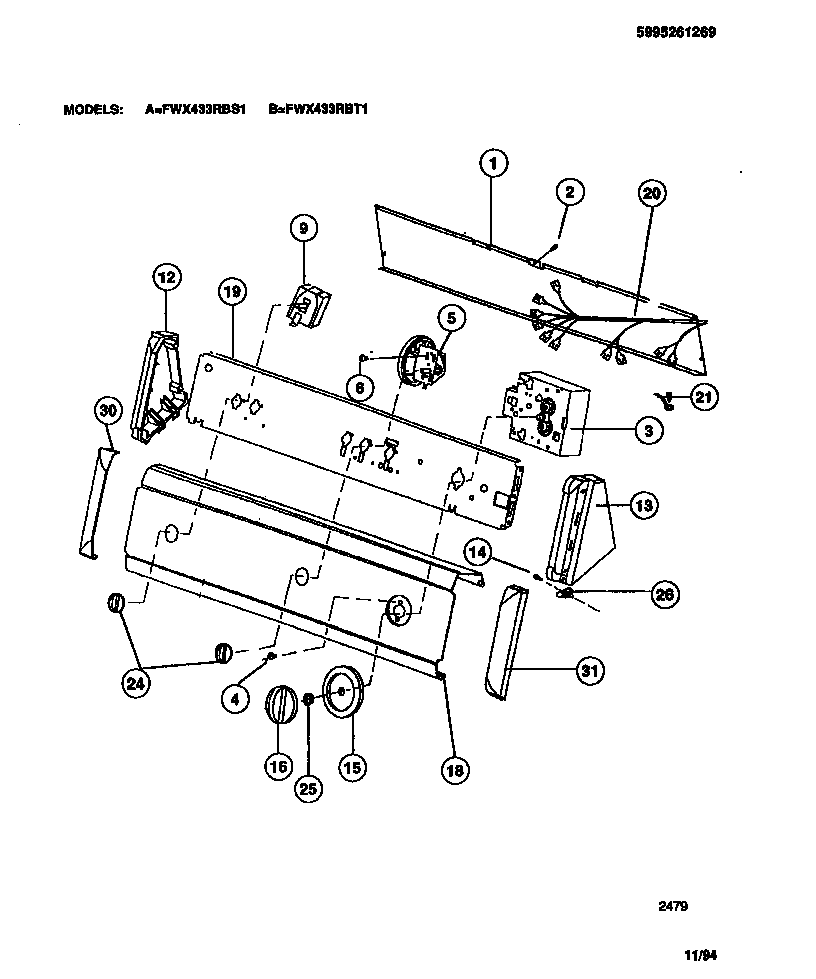

FWX433RBT1 05 – CONSOLE & CONTROLS

Products

Position	Product
1	BACKSHEET
2	131205100 Frigidaire Screw
3	WCI 131238000
4	SCREW (2)
5	WCI 131047500
6	131168200 Frigidaire Dryer Screw
9	WCI 131047000
12	WCI 131122712
13	WCI 131122702
14	WCI 5303289526
15	WCI 131140702
16	WCI 131140602
18	WCI 131252900
19	BRACKET CONTROLS
20	WCI 131166100
21	131243800 Frigidaire Screw
21A	SCREW
24	WCI 131141102
25	Spacer,washer ,timer shaft
26	CLIP
30	WCI 131122612
31	WCI 131122602
