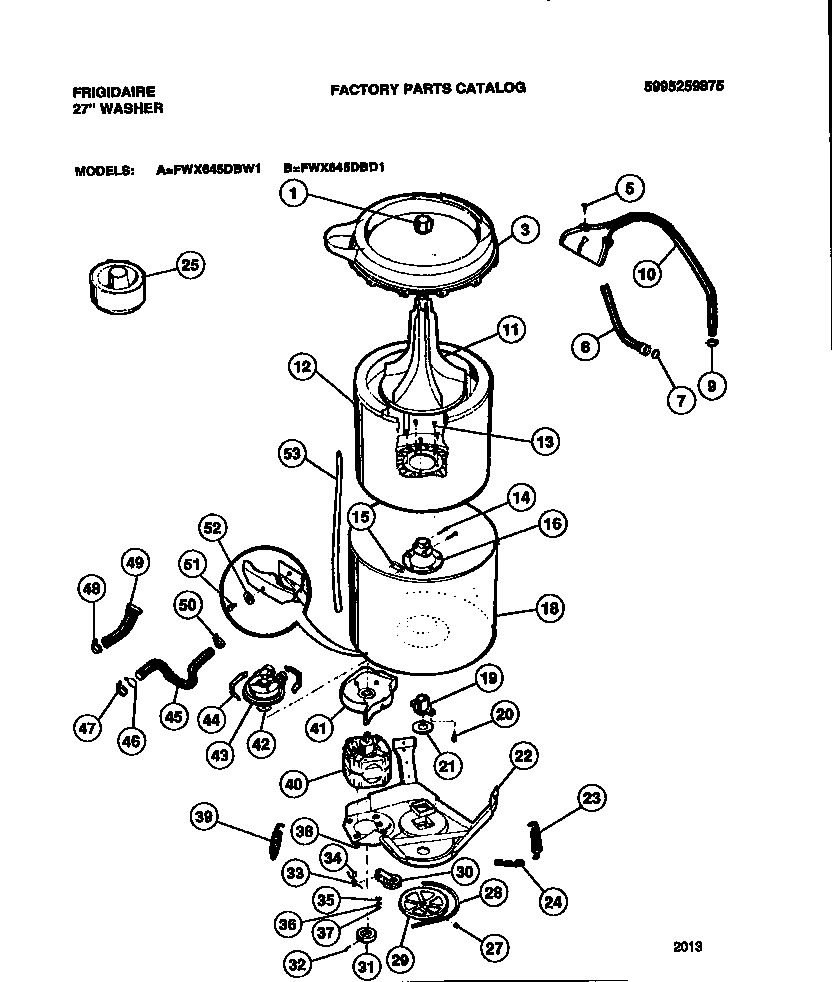

FWX645DBW1 03 – TUBS, HOSES, MOTOR

Products

Position	Product
*49601	SWITCH-MOTOR
*49600	INSERT-SPRING ADJ
1	WCI 5303208779
3	131398303 Frigidaire Tub Ring
5	WCI 5308015309
6	5303912532 Frigidaire Hose Inlet 60"
7	5303161296 Frigidaire Washer-Inlet Hose (1Piece)
9	WCI 131122006
10	NOZZLE & HOSE ASSY
11	WCI 3204401
12	WCI 131099500
13	137546400 Frigidaire Screw 5/165-18 X .625
14	137539500 Frigidaire Washer Trunnion Lock Plate Bolt
15	WCI 53038001923
16	131545101 Frigidaire Dryer Washer Transmission Trunnion Nut
18	SPLASH TUB & BEARING
19	3204405 Frigidaire Outer Tub Spin Bearing
20	3205150 Frigidaire Tub Bearing Screw
21	5308002401 Frigidaire Washer Primary
22	WCI 131373600
23	134886600 Frigidaire Spring Primary
24	WCI 131373900
25	WCI 32045405
27	5303270023 Frigidaire Screw Set
28	WASHER BELT
29	WCI 131361800
30	WCI 3204422
31	WCI 3204423
32	WCI 3204424
33	TORSION SPRING
34	WCI 3204426
35	3161433 Frigidaire Retainer
36	WASHER
37	SPRING WASHER
38	HEX NUT
39	134885900 Frigidaire Spring
40	WCI 5303284905
41	WCI 131081700
42	WCI 3204451
43	PUMP-COMPLETE
44	WCI 3204453
45	WCI 3204454
46	CLIP-HOSE TO LEG
48	131306234 Frigidaire Clamp Pump
49	5303931759 Frigidaire Pump to Tub Hose
50	CLAMP
51	WCI 3204459
52	WCI 131315800
53	5304401845 Frigidaire Tube Pressure
