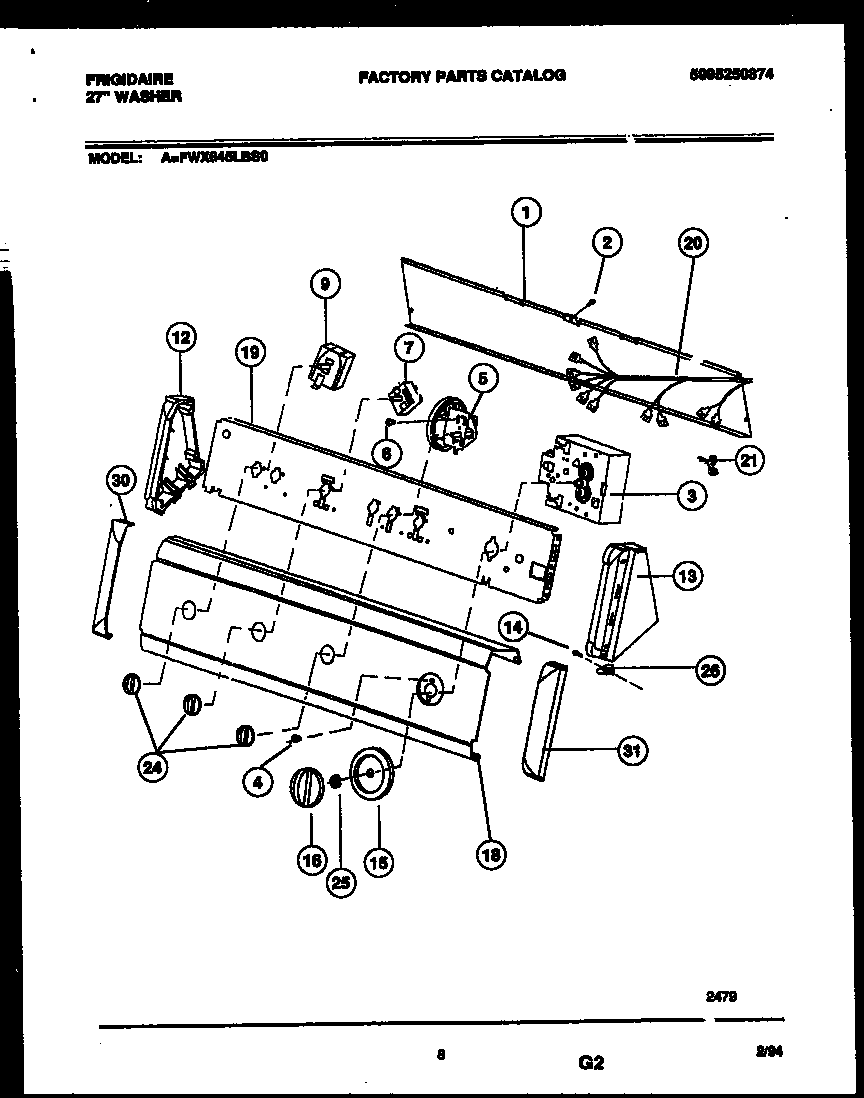

FWX645LBS0 05 – CONSOLE AND CONTROL PARTS

FWX645LBS0 05 – CONSOLE AND CONTROL PARTS

Written by

in

FWX645LBS0 05 – CONSOLE AND CONTROL PARTS

Products

PositionProduct
*92377Switch,2 position
1BACKSHEET
2131205100 Frigidaire Screw
3WCI 131238300
4SCREW (2)
5WCI 131047700
6131168200 Frigidaire Dryer Screw
7Switch,speed/option ,3 posn rotary
9WCI 131081200
12END CAP-L.H.-WHITE
13END CAP-R.H.-WHITE
14WCI 5303289526
15WCI 131140701
16WCI 131140601
18WCI 131257200
19WCI 131297306
20WCI 131154200
21ASCREW
21131243800 Frigidaire Screw
24131858004 Frigidaire Control Knob, White
25Spacer,washer ,timer shaft
26CLIP
30COVER-CAP-LH-WHITE
31COVER-CAP-RH-WHITE
