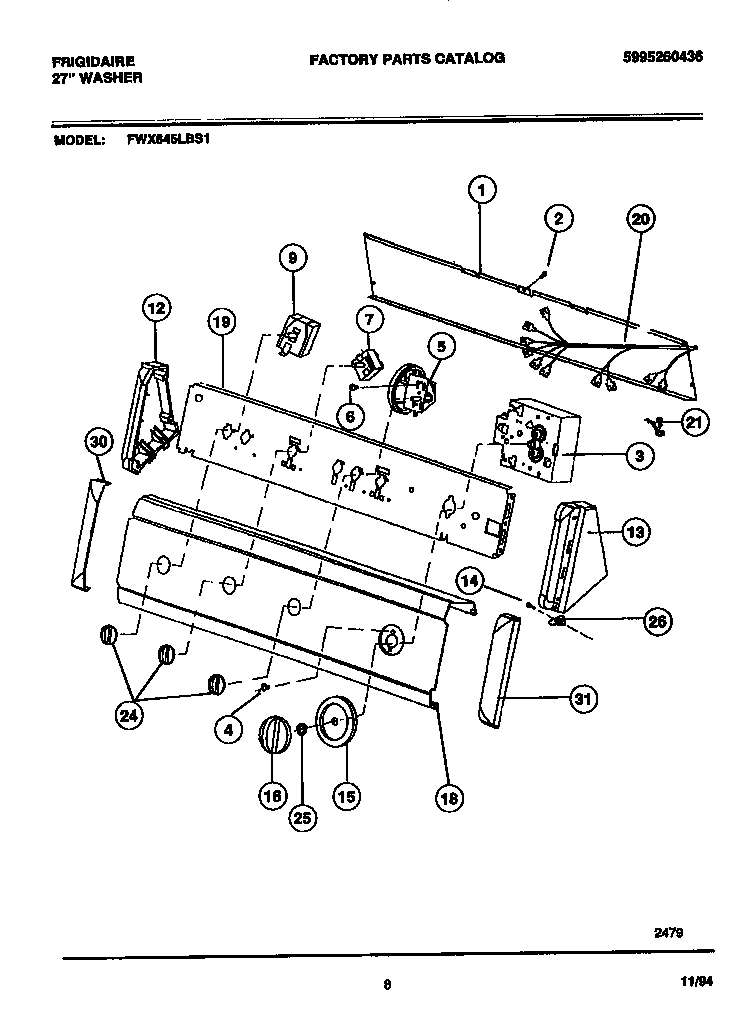

FWX645LBS1 05 – CONSOLE & CONTROLS

FWX645LBS1 05 – CONSOLE & CONTROLS

Written by

in

FWX645LBS1 05 – CONSOLE & CONTROLS

Products

PositionProduct
1BACKSHEET
2WCI 5308006558
3WCI 131238300
4SCREW (2)
5WCI 131047700
6131168200 Frigidaire Dryer Screw
7Switch,speed/option ,3 posn rotary
9WCI 131081200
12END CAP-L.H.-WHITE
13END CAP-R.H.-WHITE
14WCI 5303289526
15WCI 131140701
16WCI 131140601
18WCI 131257200
19WCI 131297306
20WCI 131254200
21SCREW
21131243800 Frigidaire Screw
24131858004 Frigidaire Control Knob, White
25Spacer,washer ,timer shaft
26CLIP
30COVER-CAP-LH-WHITE
31Switch,2 position
31COVER-CAP-RH-WHITE
