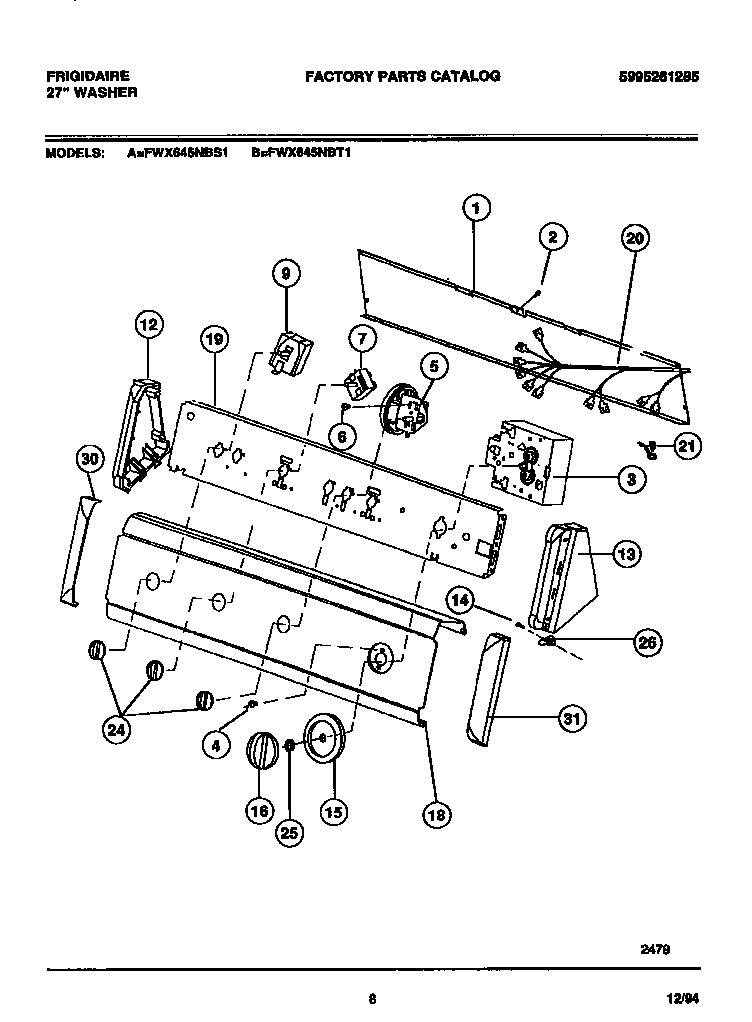

| 1 | BACKSHEET |
| 2 | 131205100 Frigidaire Screw |
| 3 | WCI 131238300 |
| 4 | SCREW (2) |
| 5 | WCI 131047700 |
| 6 | 131168200 Frigidaire Dryer Screw |
| 9 | WCI 131081200 |
| 12 | END CAP-L.H.-WHITE |
| 13 | END CAP-R.H.-WHITE |
| 14 | WCI 5303289526 |
| 15 | WCI 131140701 |
| 16 | WCI 131140601 |
| 18 | WCI 131347000 |
| 19 | WCI 131157306 |
| 20 | WCI 131254200 |
| 21A | SCREW |
| 21 | 131243800 Frigidaire Screw |
| 24 | 131858004 Frigidaire Control Knob, White |
| 25 | Spacer,washer ,timer shaft |
| 26 | CLIP-CONSOLE MTG |
| 30 | COVER-CAP-LH-WHITE |
| 31 | COVER-CAP-RH-WHITE |
| 31B | Switch,2 position |
