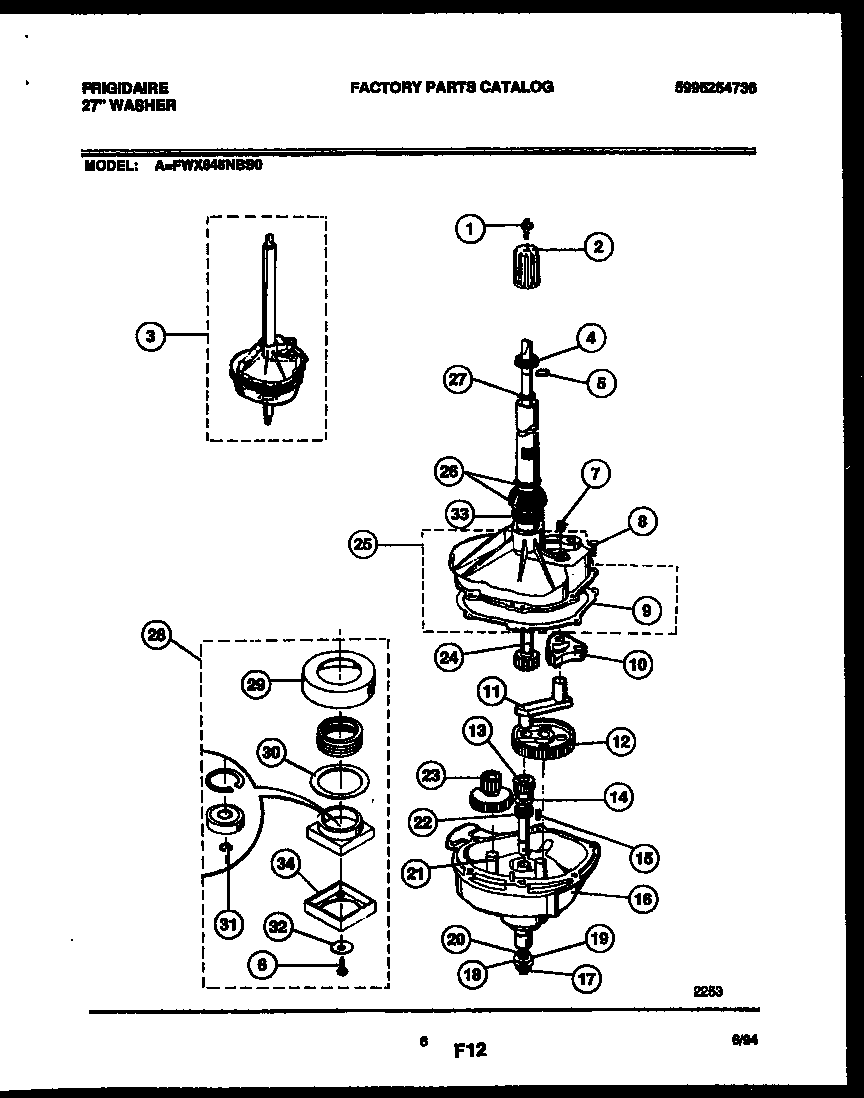

FWX645NBT0 04 – TRANSMISSION PARTS

Products

Position	Product
1	WCI 3204461
2	134418700 Frigidaire Agitator Drive Hub
3	134735700 Frigidaire Transmission Assembly
4	5303161307 Frigidaire Dryer Seal Assembly
6	SCREW (2)
7	WCI 5303161224
8	SCREW (6)
9	GASKET
10	WCI 5308011268
11	WCI 5303161169
12	WCI 5308015496
13	WCI 5308014905
15	WCI 5303161227
16	HOUSING-LOWER
17	WCI 5303161223
18	WCI 5308002475
19	WCI 5303161226
20	5303161173 Frigidaire Seal Assembly
21	OIL-TRANSMISSION (1 QT)
22	WCI 5303161174
23	WCI 5303161175
24	WCI 5308015507
25	WCI 5303205527
26	SEAL-TUB
27	THRUST WASHER
28	BEARING HOUSING
29	WCI 5303161182
30	WCI 5308057430
31	WCI 5308015536
32	RUBBER SPACER (2)
33	SLINGER
34	WCI 5377009100
