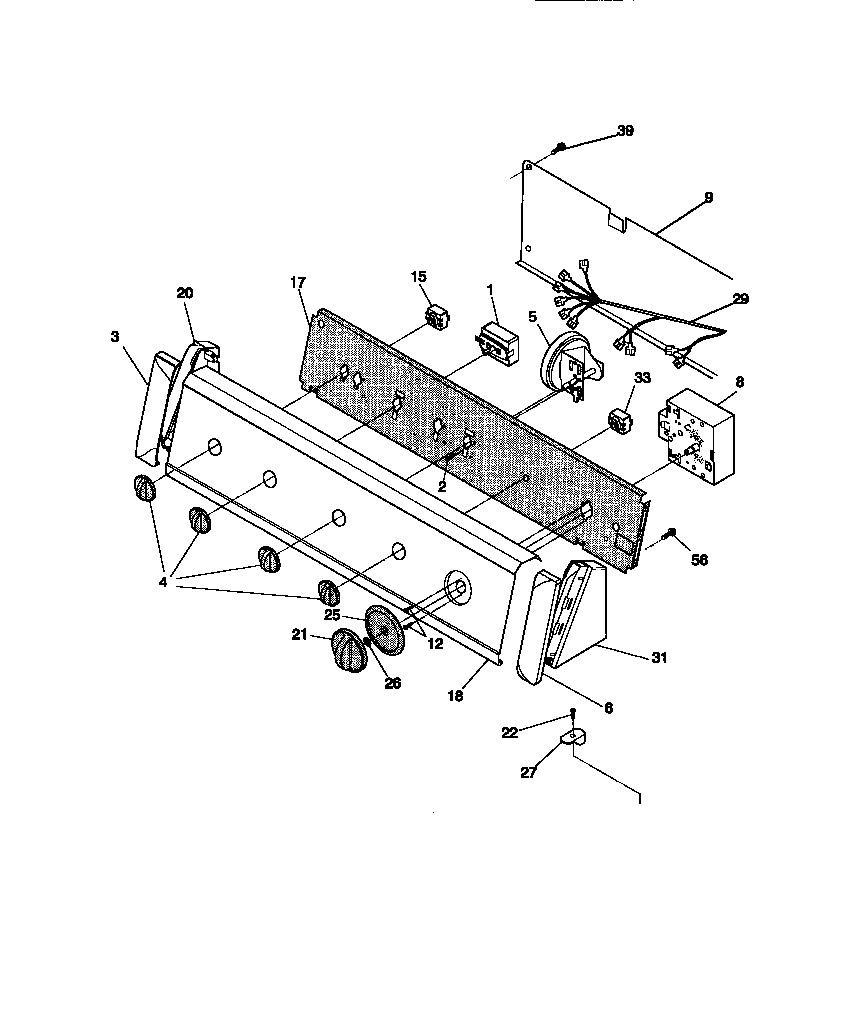

FWX645NBT2 05 – CONTROL PANEL

Products

Position	Product
1	Switch,speed/option ,3 posn rotary
2	131168200 Frigidaire Dryer Screw
3	WCI 131122612
4	WCI 131141102
5	WCI 131395500
6	WCI 131122602
8	WCI 131360600
9	BACKSHEET
12	SCREW (2)
15	WCI 131081200
17	WCI 131297306
18	WCI 131347400
20	WCI 131122712
21	WCI 131140602
22	WCI 131266300
25	WCI 131140702
26	Spacer,washer ,timer shaft
27	CLIP-CONSOLE MTG
29	WCI 131342400
31	WCI 131122702
33	Switch,2 position
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
