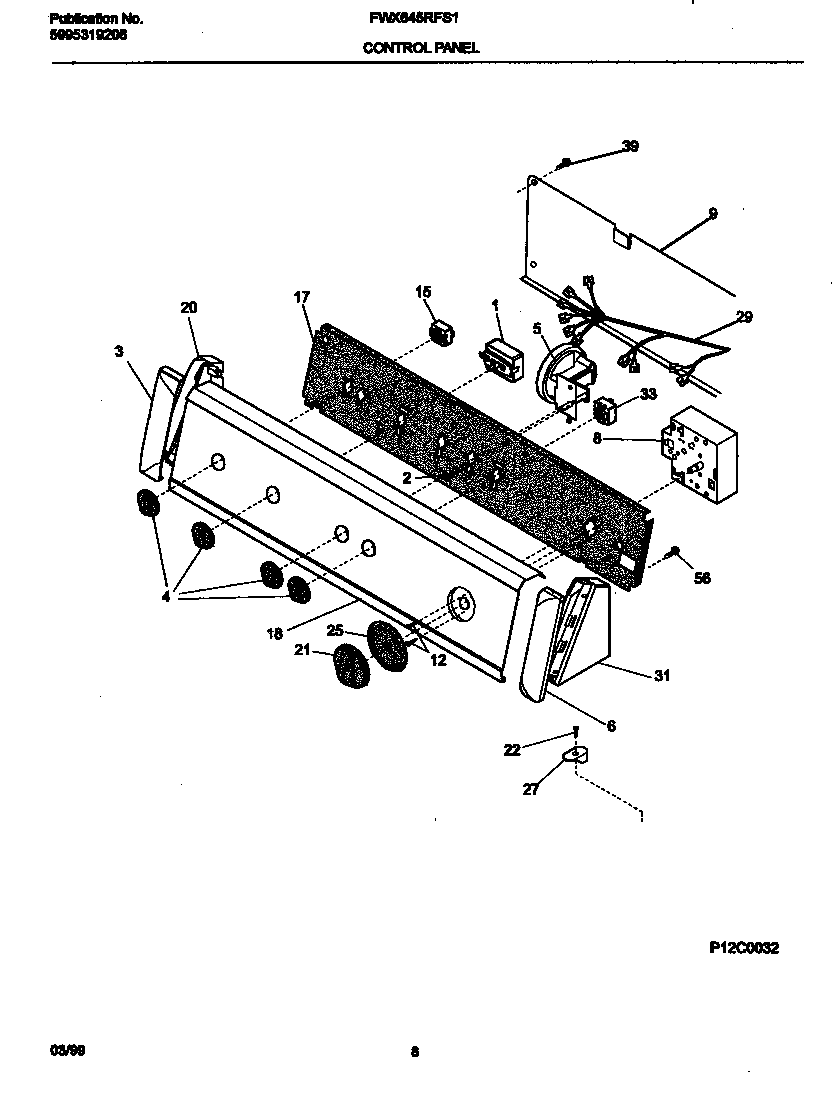

FWX645RFS1 05 – CONTROL PANEL

Products

Position	Product
*70243	WCI 131507700
1	WCI 131120400
2	131168200 Frigidaire Dryer Screw
3	COVER-CAP-LH-WHITE
4	131858004 Frigidaire Control Knob, White
5	WCI 131395500
6	COVER-CAP-RH-WHITE
8	WCI 131581602
9	BACKSHEET
12	218359202 Frigidaire Refrigerator Screw
15	WCI 131081200
17	WCI 131580006
18	WCI 131684900
20	END CAP-L.H.-WHITE
21	WCI 131592001
22	WCI 131266300
25	WCI 131592101
27	CLIP-CONSOLE MTG
29	WCI 131794400
31	END CAP-R.H.-WHITE
33	Switch,2 position
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
