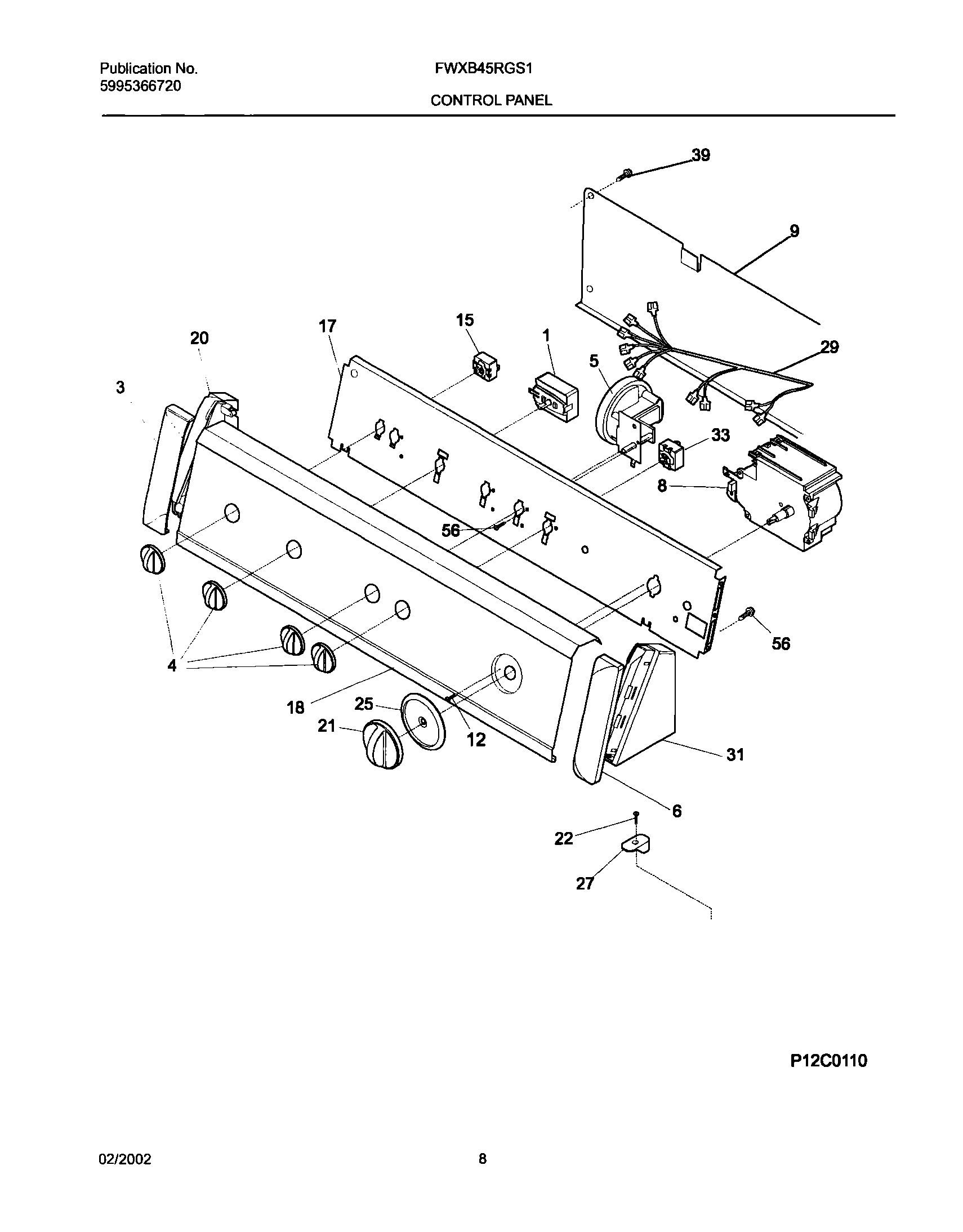

FWXB45RGS1 09 – CONTROL PANEL

Products

Position	Product
NI	WCI 131507700
1	Switch,speed/option ,3 posn rotary
3	COVER-CAP-LH-WHITE
4	131858004 Frigidaire Control Knob, White
5	WCI 131047700
6	COVER-CAP-RH-WHITE
8	WCI 131581600
9	WCI 134088700
12	131168200 Frigidaire Dryer Screw
15	WCI 131081200
17	WCI 131580006
18	WCI 134024700
20	END CAP-L.H.-WHITE
21	WCI 131592001
22	WCI 131266300
25	WCI 131592105
27	CLIP-CONSOLE MTG
29	WCI 134129900
31	END CAP-R.H.-WHITE
33	Switch,2 position
39	131205100 Frigidaire Screw
56	131243800 Frigidaire Screw
