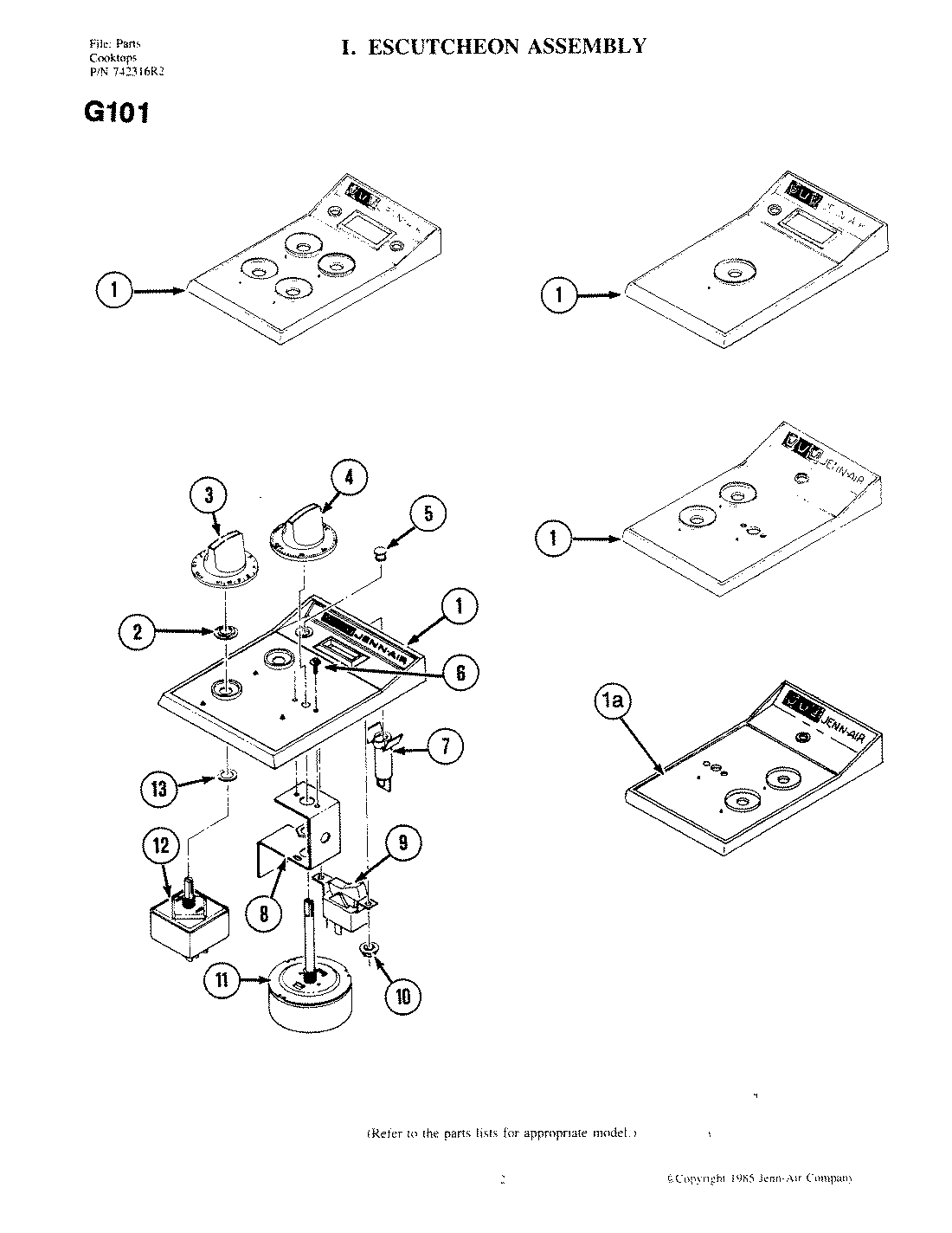

G101 03 – ESCUTCHEON ASSEMBLY

G101 03 – ESCUTCHEON ASSEMBLY

Written by

in

G101 03 – ESCUTCHEON ASSEMBLY

Products

PositionProduct
1MAY 701598
3WPY700854 Whirlpool Oven Burner Knob
312200035 Whirlpool Burner Knob Set
5WPY700631 Whirlpool Indicator Light Lens
7MAY 715396
9MAY 715397
11NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12700855K Whirlpool Oven Cooktop Burner Switch
12W11120795 Whirlpool Infinite Switch
13MAY 712179
13MAY 702026
13MAY Y700833
14MAY 16000448
