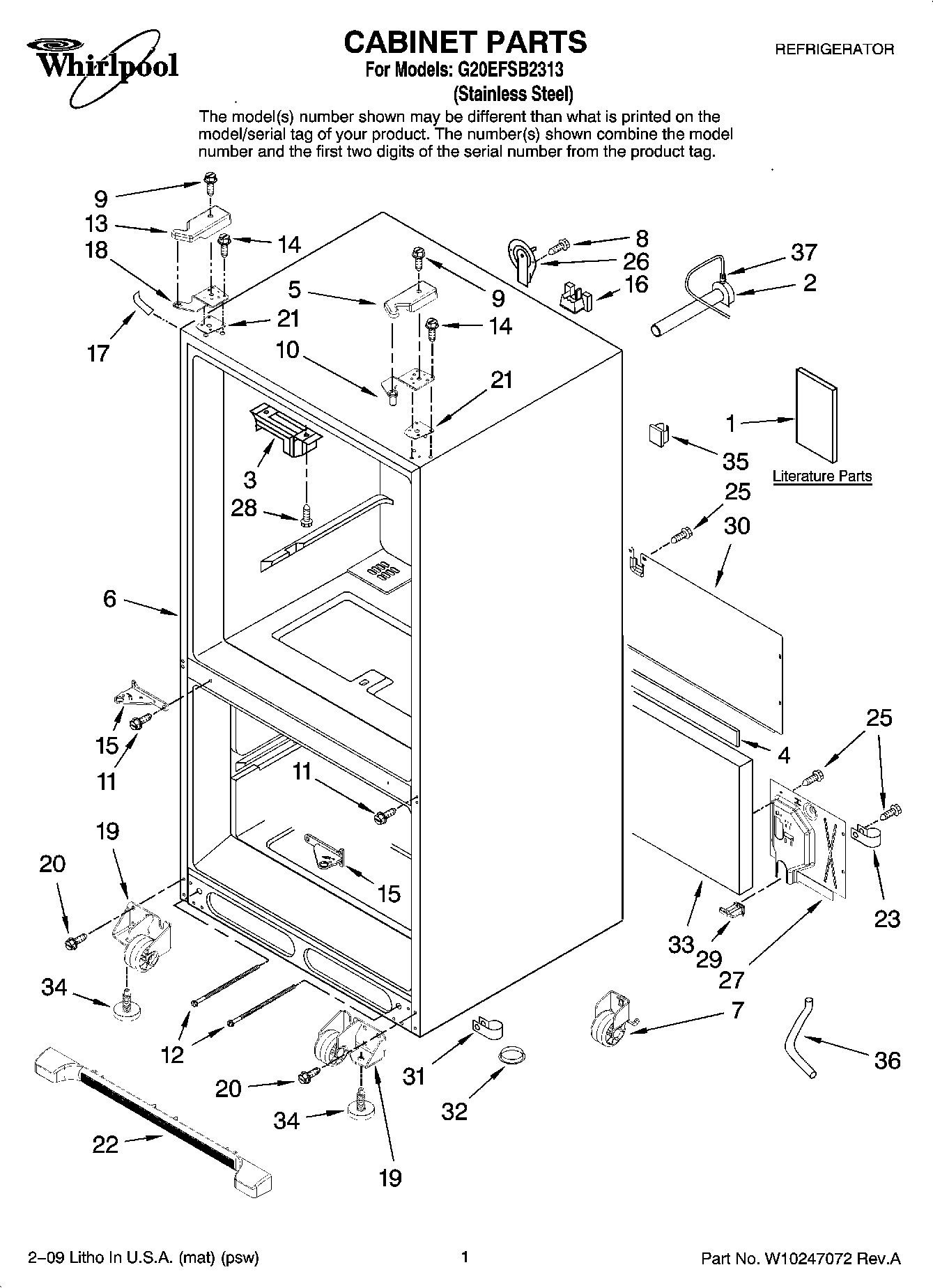

G20EFSB2313 01 – CABINET PARTS

G20EFSB2313 01 – CABINET PARTS

Written by

in

G20EFSB2313 01 – CABINET PARTS

Products

PositionProduct
1Guide, Energy
1Owners Manual
1Tech Sheet
2W11176463 Whirlpool Refrigerator Water Tube
3WP67003405 Whirlpool Pivot Block
4Gasket
5Cover, Right Hinge (Black)
6Cabinet, (Not A Serviceable Part)
7Roller Assy.(Rear)
8WP98165 Whirlpool Screw
9WP8281196 Whirlpool Screw
10WP12566607ED Whirlpool Refrigerator Door Hinge
11WP67006380 Whirlpool Screw
12Bolt, Adjusting (Rear)
13Cover, Left Hinge (Black)
14WP489349 Whirlpool Refrigerator Screw
15W10918164 Whirlpool Refrigerator Door Hinge
16WP12777701 Whirlpool Refrigerator Filler Block
1767003485 Whirlpool Refrigerator Corner Cover (Black)
18WP12566606ED Whirlpool Refrigerator Door Hinge
19WPW10515763 Whirlpool Refrigerator Cabinet Roller
19WPW10515762 Whirlpool Refrigerator Cabinet Roller
2067006564 Whirlpool Refrigerator Screw
21Shim, Hinge
22WPW10131134 Whirlpool Refrigerator Front Grille
23W10833902 Whirlpool Refrigerator Clamp
2567006425 Whirlpool Refrigerator Screw
2612726003 Whirlpool Refrigerator Water Cover
27Cover, Water Valve
28WP7101P126-60 Whirlpool Screw
2912831101 Whirlpool Refrigerator Tube Clamp
30Cover, Unit
3167001067 Whirlpool Refrigerator Drain Tube Clip
32A3076901 Whirlpool Refrigerator Plug
3367003796 Whirlpool Refrigerator Fiber Acoustic
34WPW10141622 Whirlpool Leveler
35WPM0104106 Whirlpool Refrigerator Clip
36Tube, Drain
37WPM0114003 Whirlpool Microwave Speed Clip Clamp
